Vehicle Measurements

Every dimension documented with a reference photo. All measurements are approximate and should be confirmed on site before production.

Exterior Height

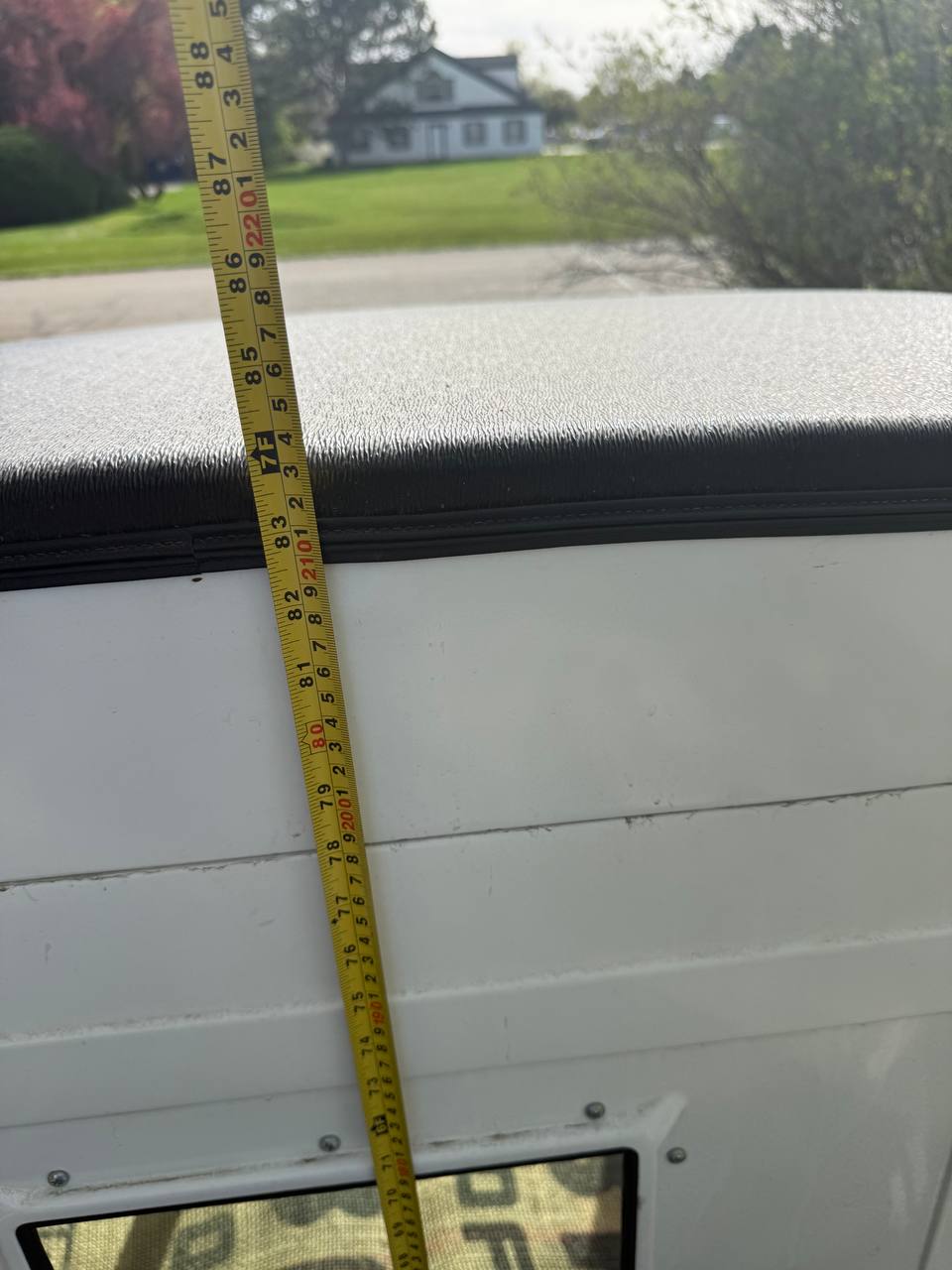

Cab Height to Roof Peak
88 in
Height from ground to the highest point of the cab roof.
Cab Height to Roof Peak

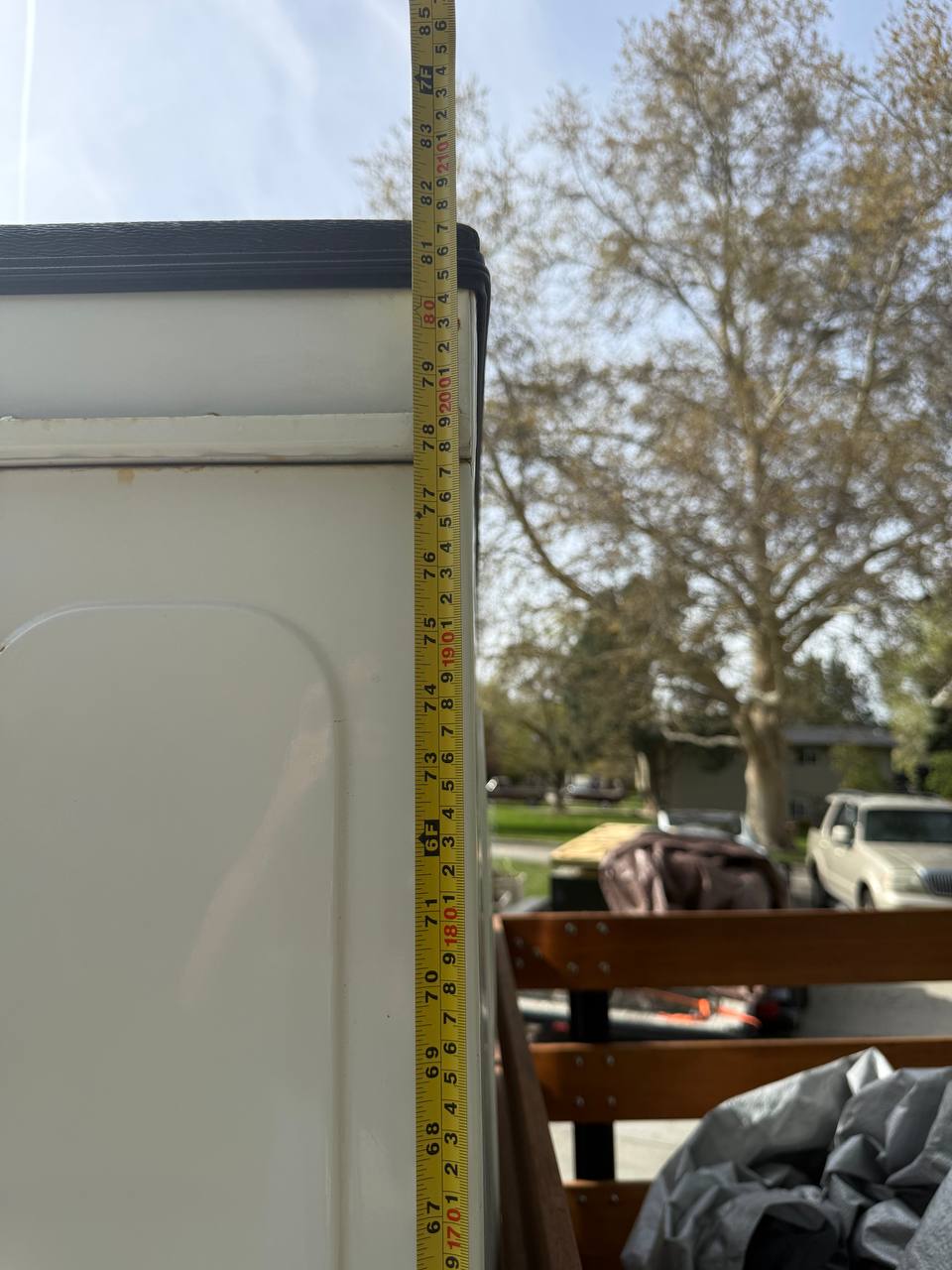

Cab Height to Drip Rail
84 in
Height from ground to the drip rail running along the top of the cab sides.
Cab Height to Drip Rail

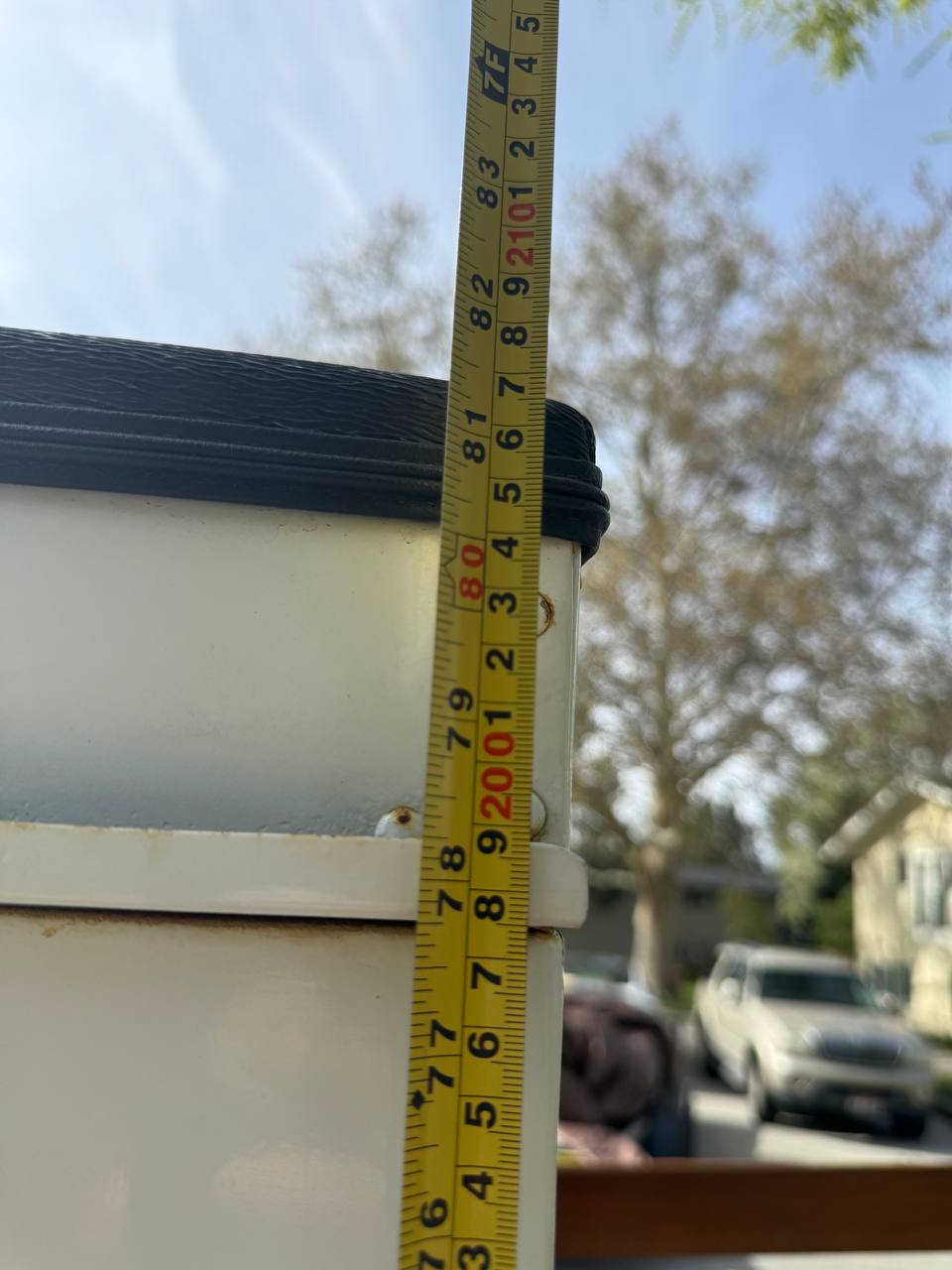

Cab Rear Corner Height
80 in
Height from ground to the cab roofline at the rear corner.
Cab Rear Corner Height

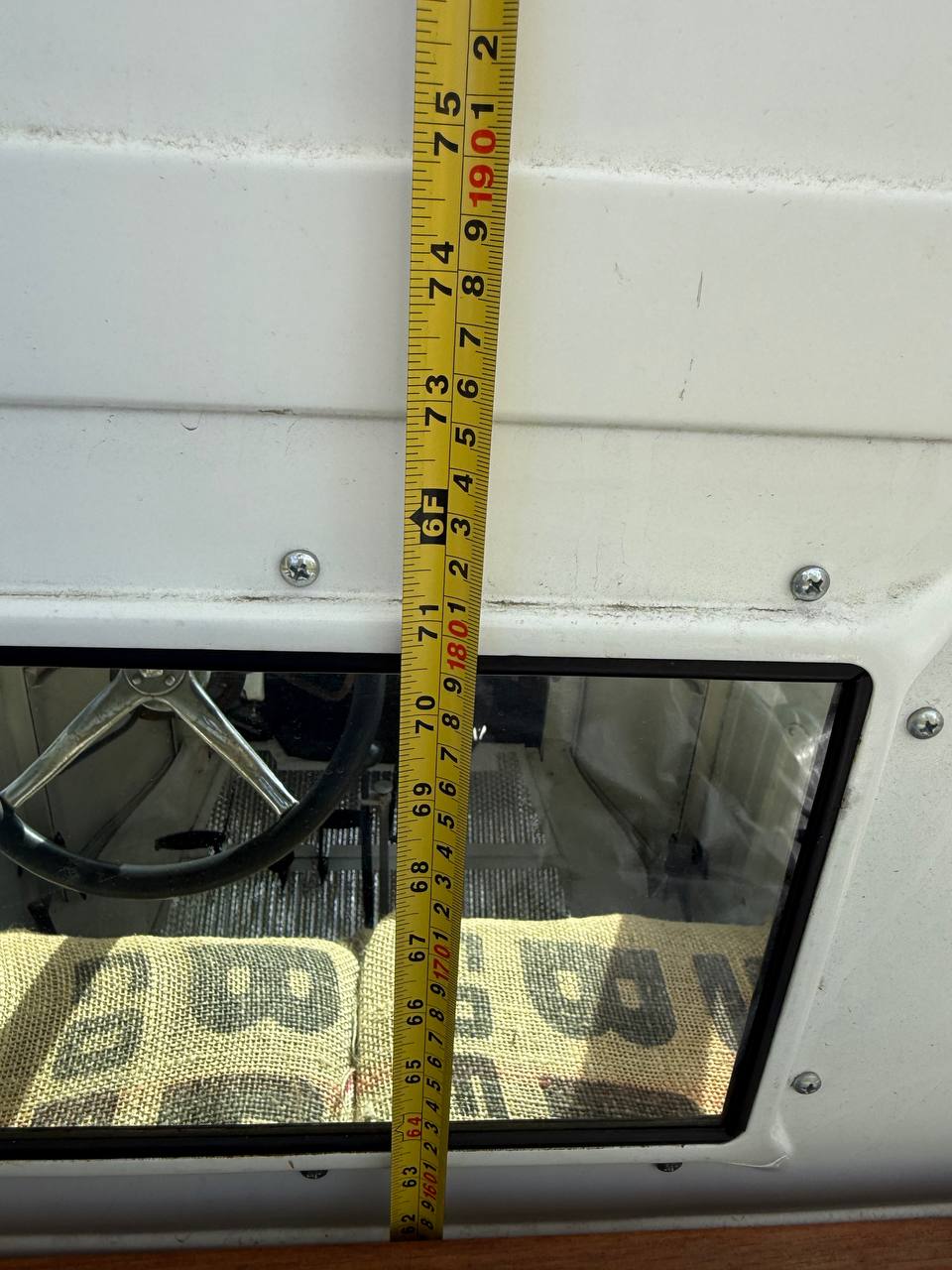

Cab Rear Panel Seam
67 in
Height from ground to the horizontal seam between upper and lower cab body panels.
Cab Rear Panel Seam

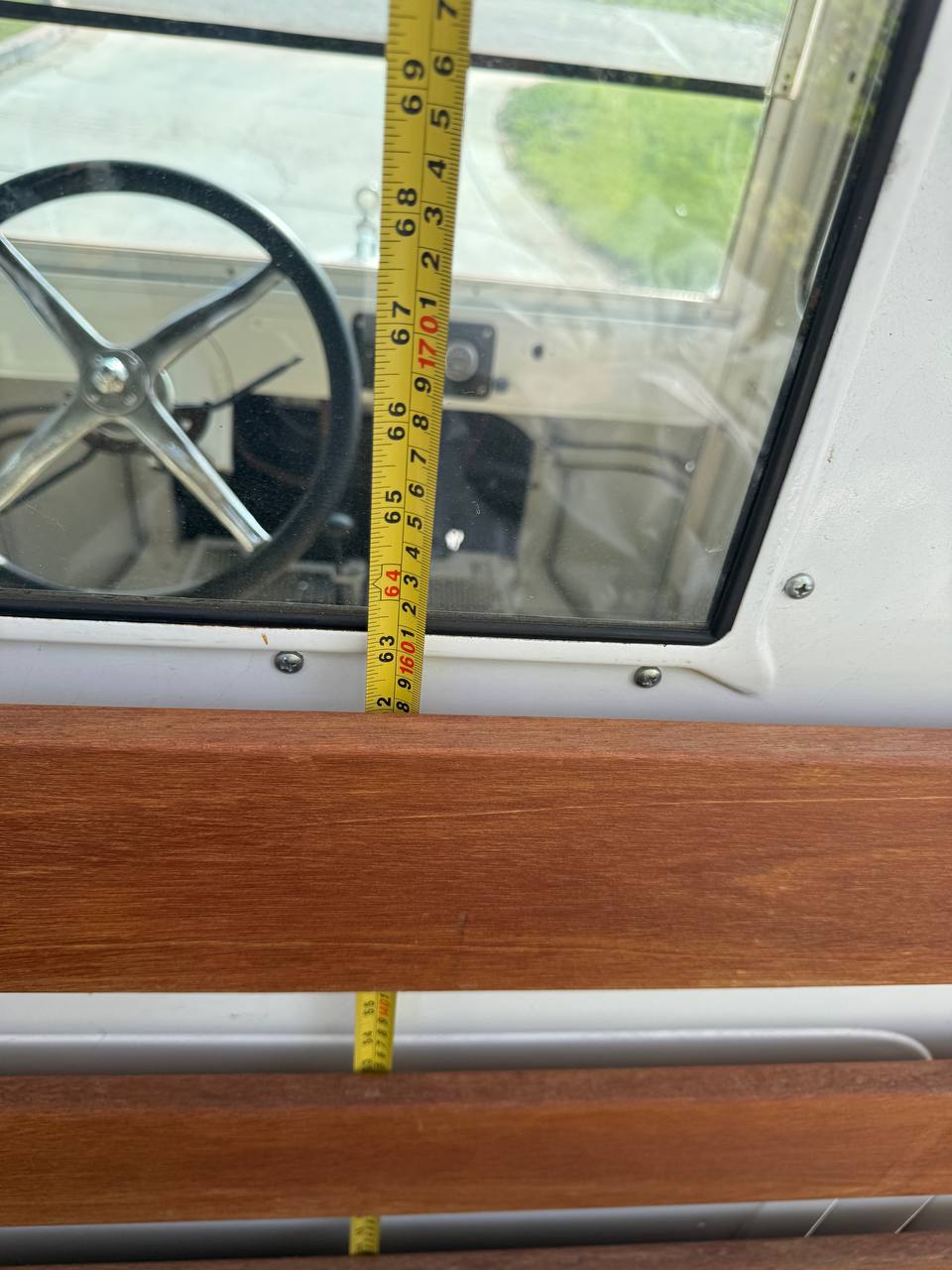

Cab Rear Window Bottom
64 in
Height from ground to the bottom edge of the rear window opening.
Cab Rear Window Bottom
Ground Clearance

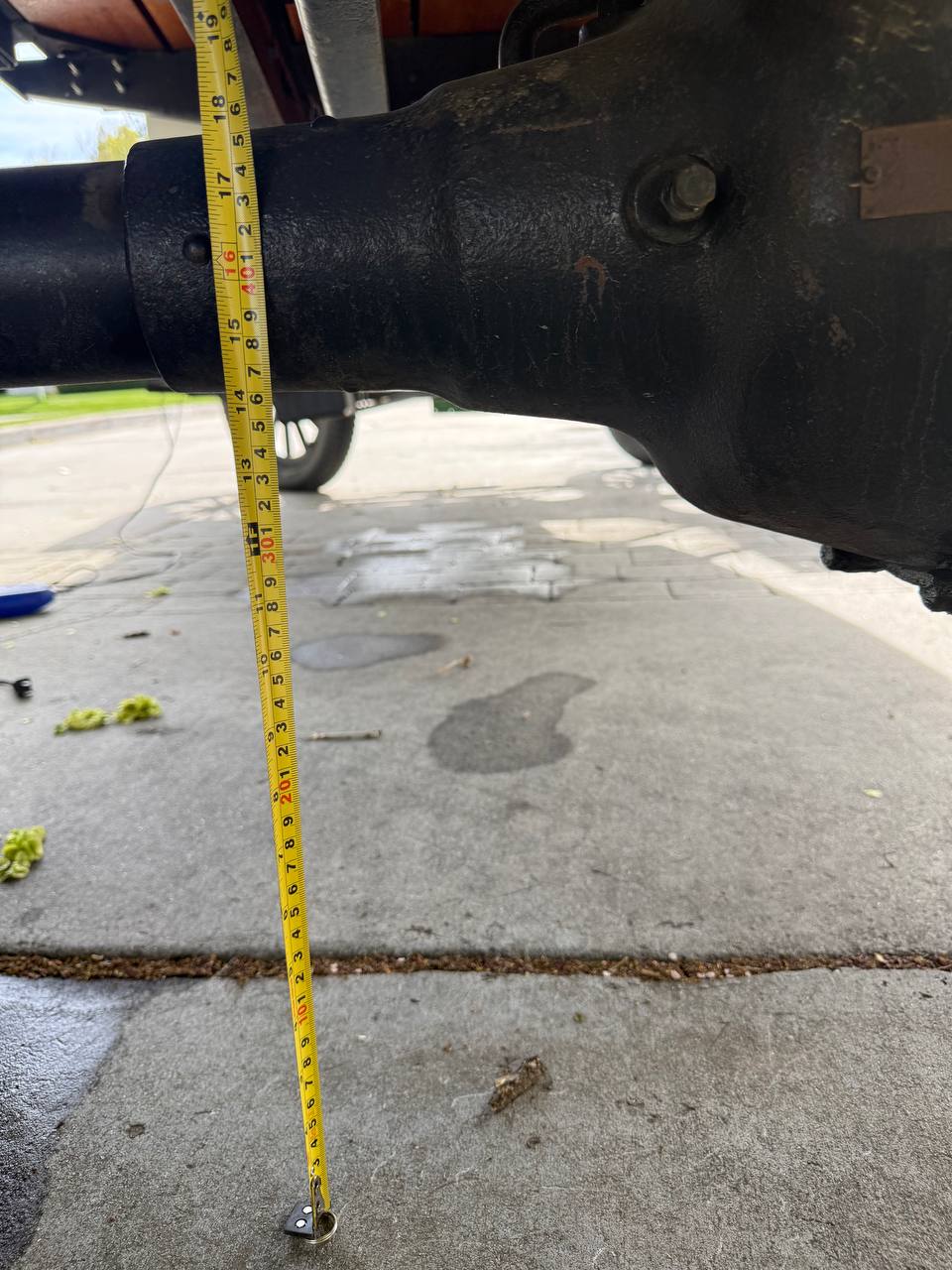

Rear Axle Ground Clearance
16 in
Clearance from ground to the bottom of the rear differential housing.
Rear Axle Ground Clearance

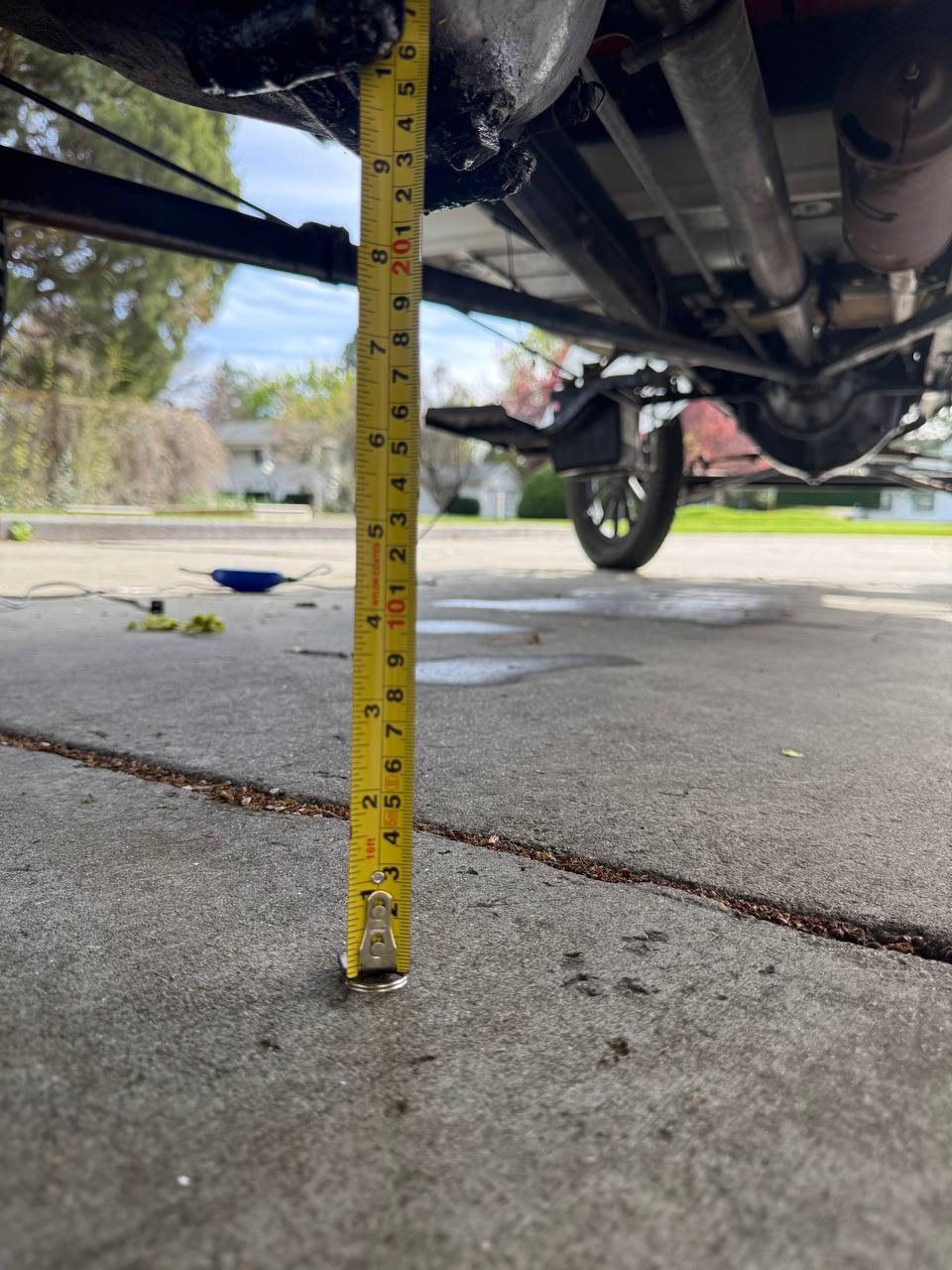

Frame Ground Clearance
15 in
Clearance from ground to the underside of the chassis frame.
Frame Ground Clearance
Wheels and Tires

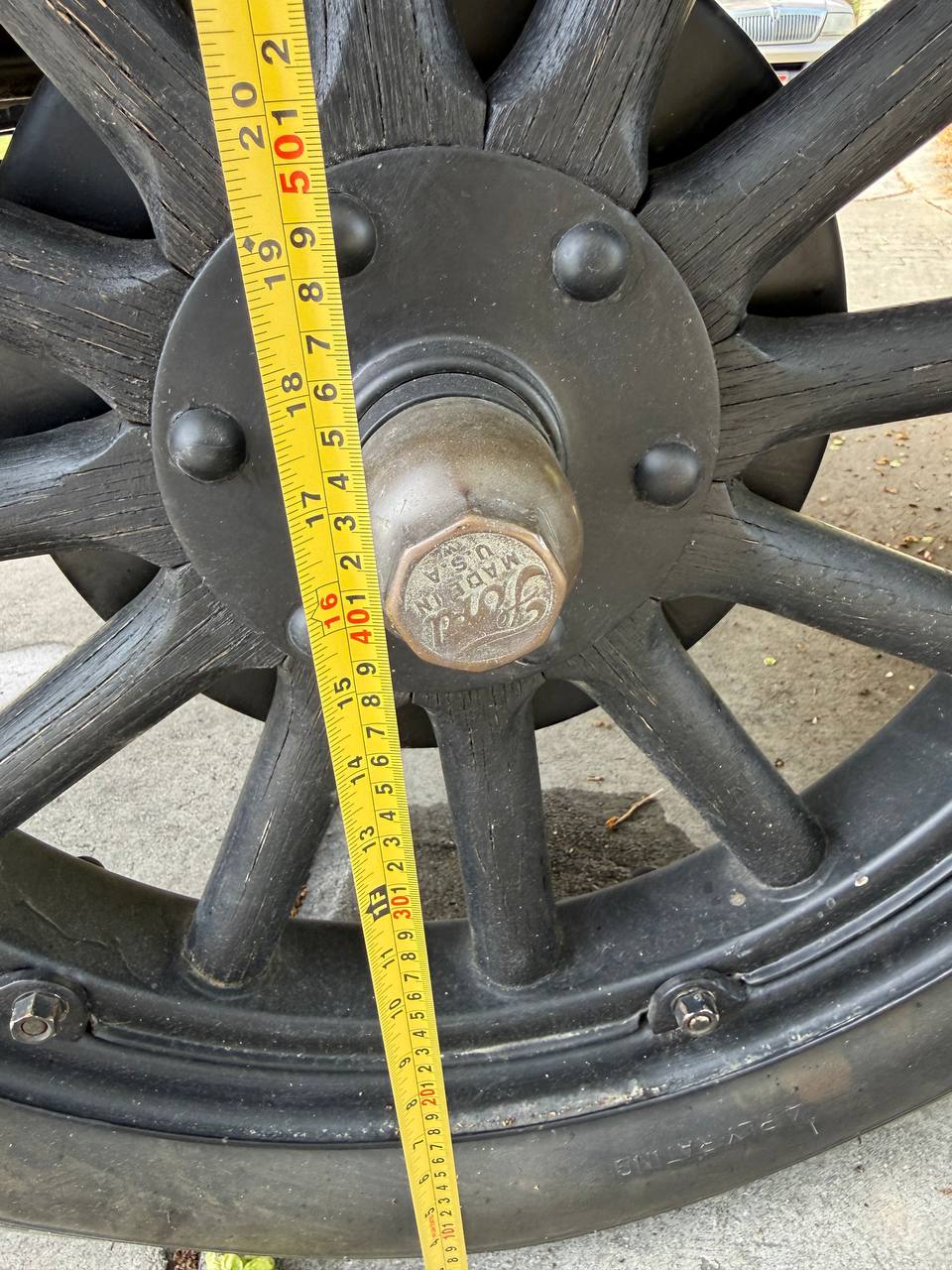

Wheel Hub Center Height
16 in
Height from ground to the center of the rear wheel hub.
Wheel Hub Center Height

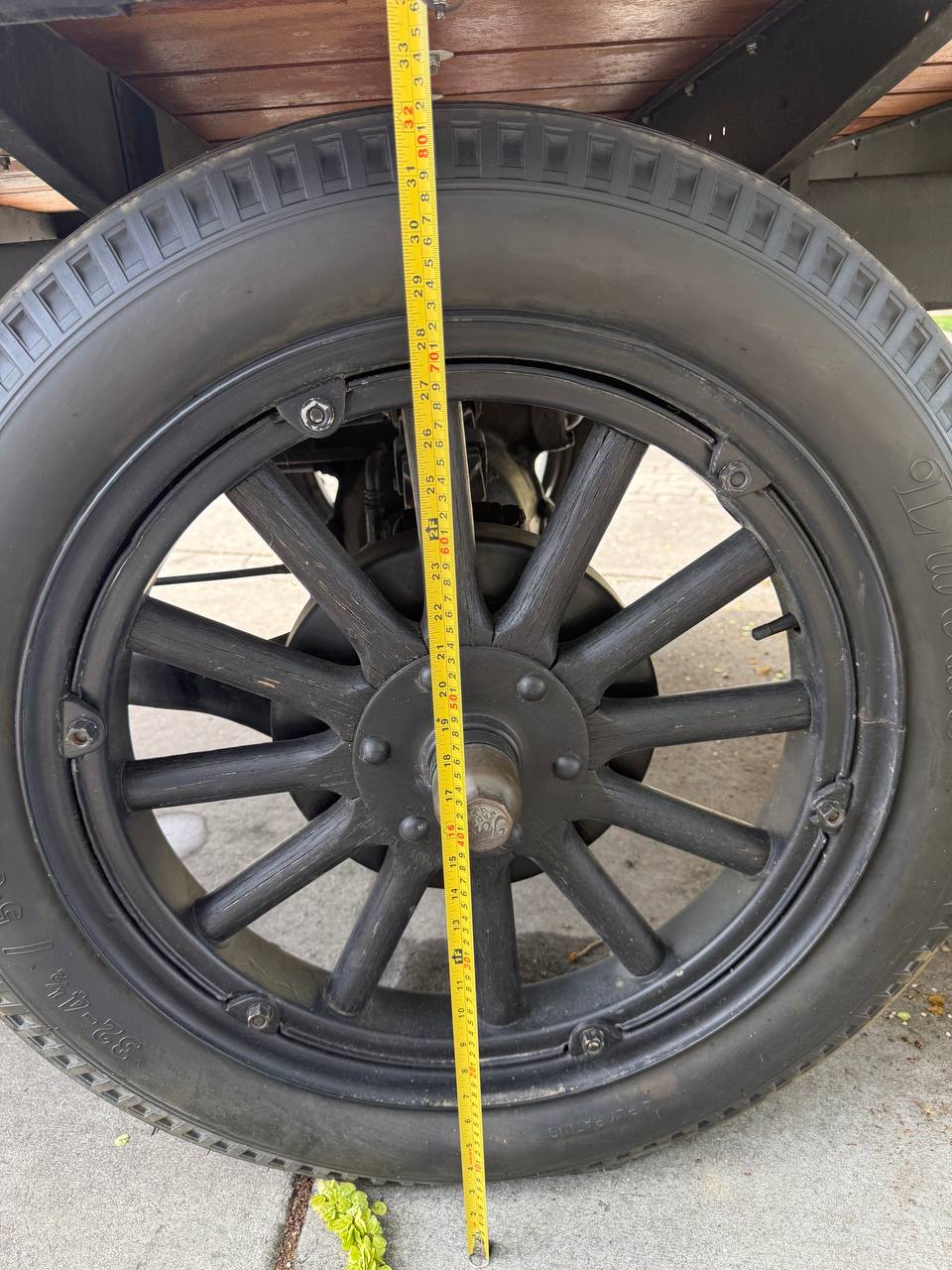

Rear Wheel Diameter
31 in
Full diameter of the rear wheel including tire.
Rear Wheel Diameter

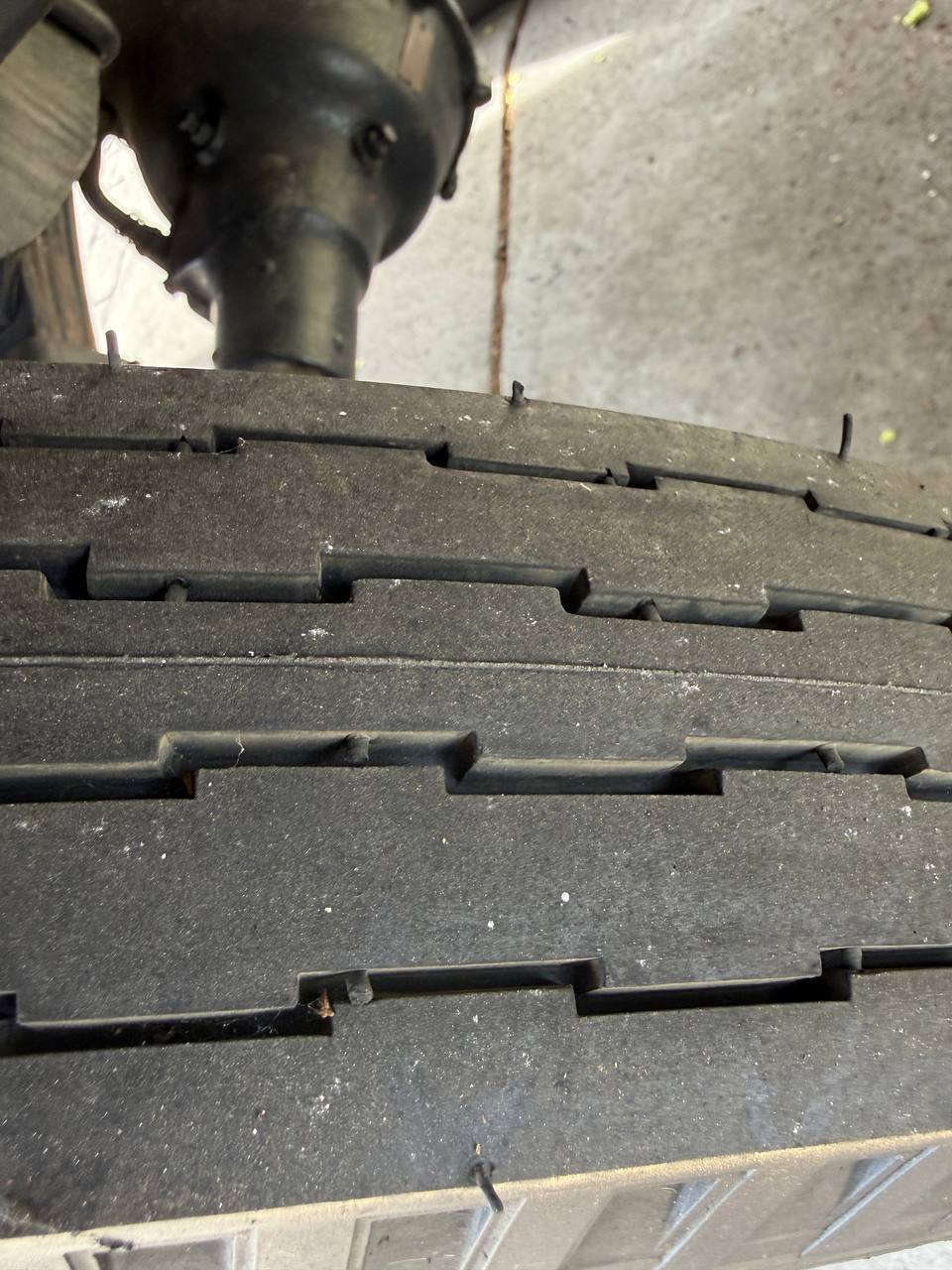

Tire Tread Reference
Period-correct tire tread pattern. Reference photo for art department and prop matching.
Tire Tread Reference

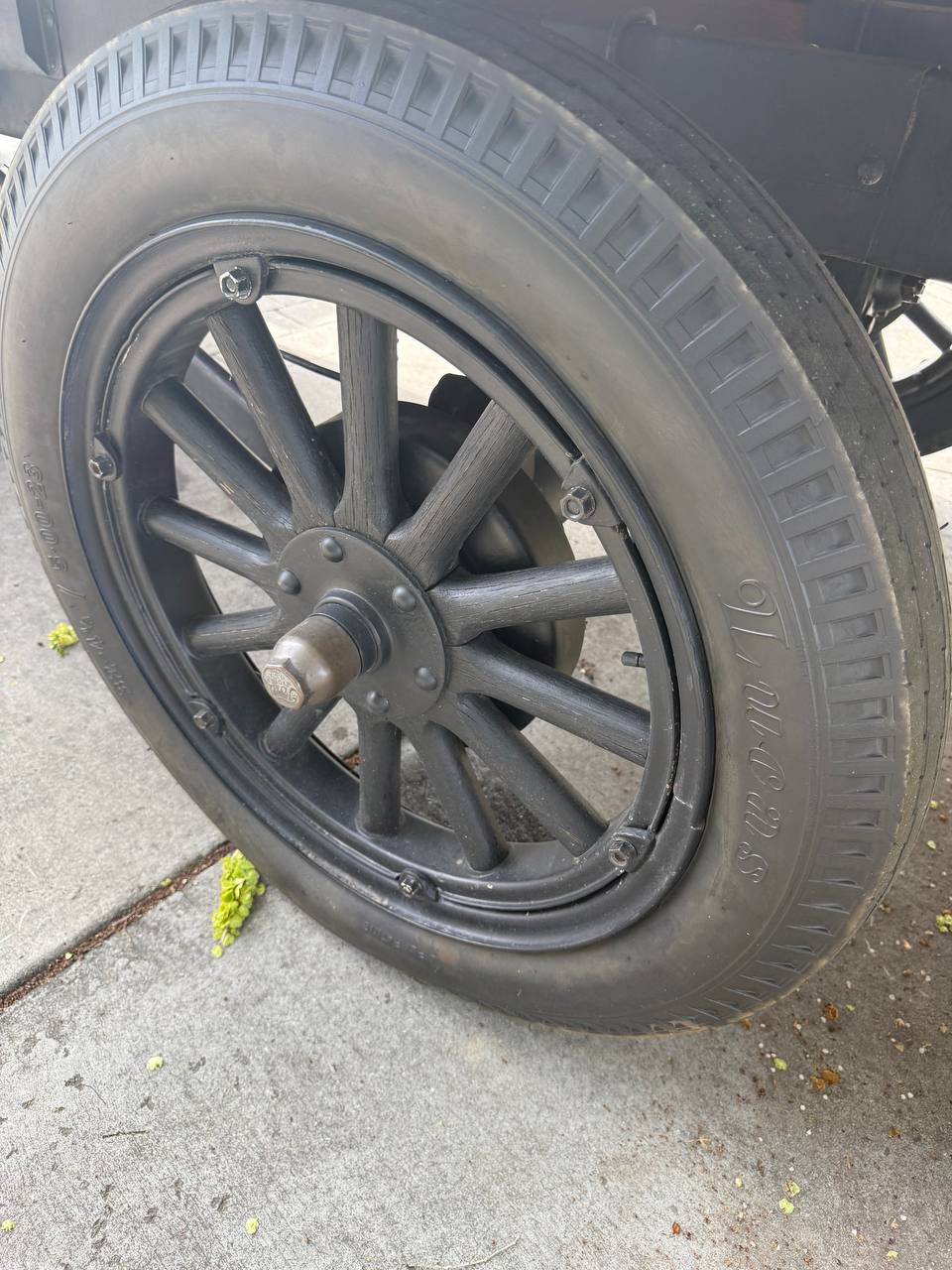

Front Wheel Reference
Front wooden spoke wheel. Reference photo showing spoke count and hub detail.
Front Wheel Reference
Cab Exterior Width

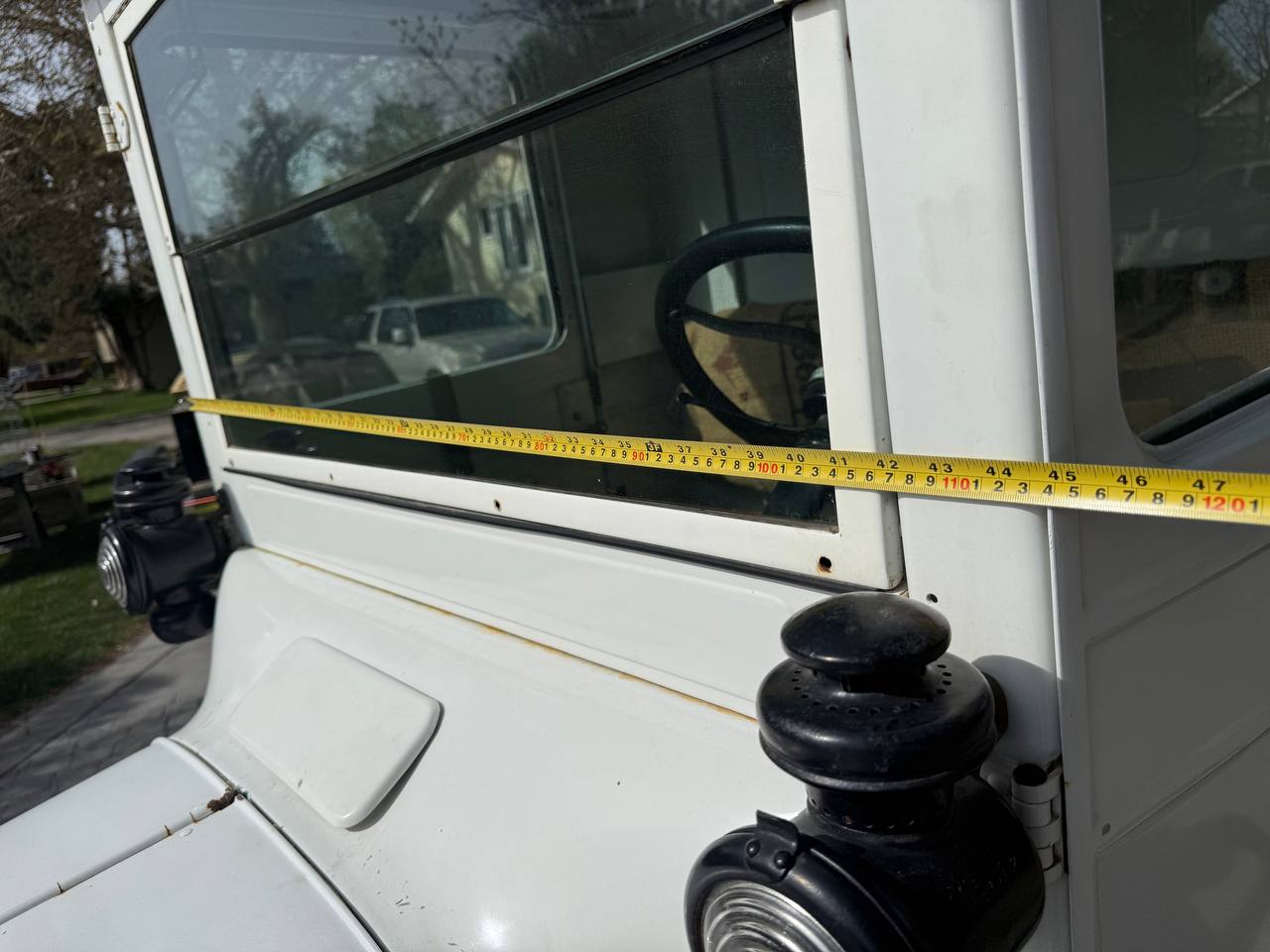

Windshield / Front Opening
46.5 in
Width of the cab front measured at windshield level.
Windshield / Front Opening

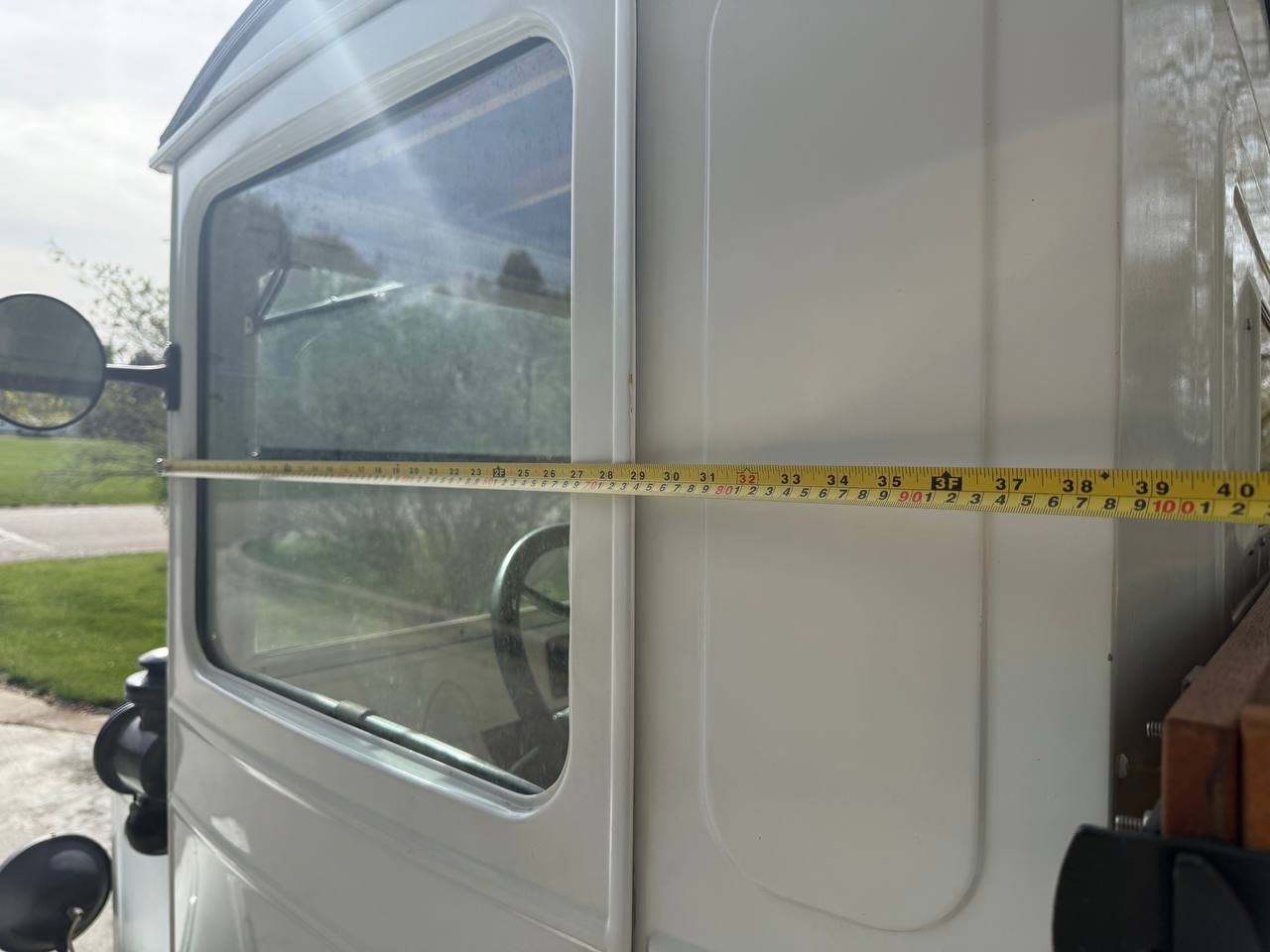

Cab Width at Window
40 in
Cab exterior width measured horizontally at window level.
Cab Width at Window

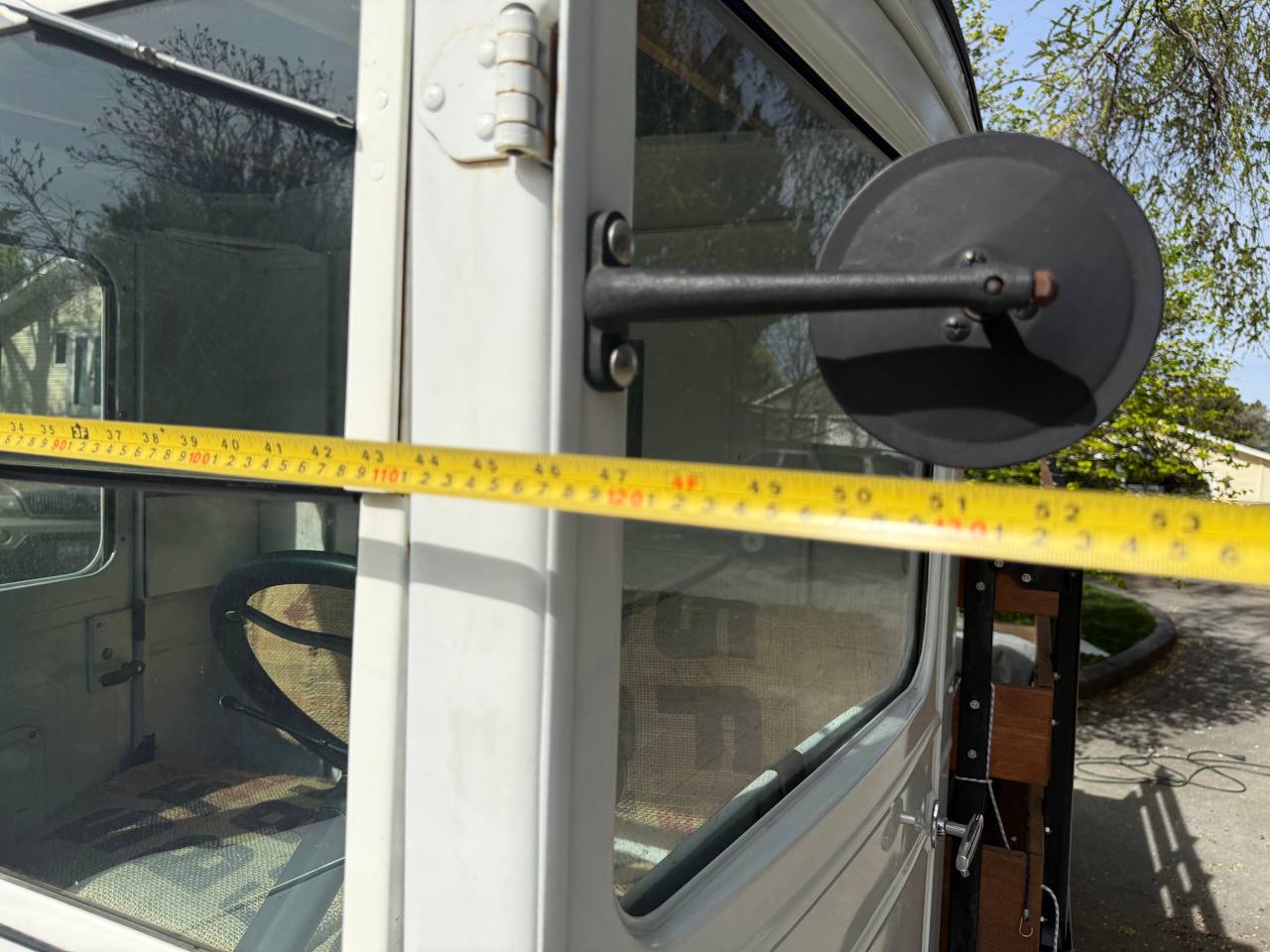

Cab Width with Mirror (front)
54 in
Total cab width including driver side mirror, measured from front angle. Relevant for rigging and lane clearance.
Cab Width with Mirror (front)

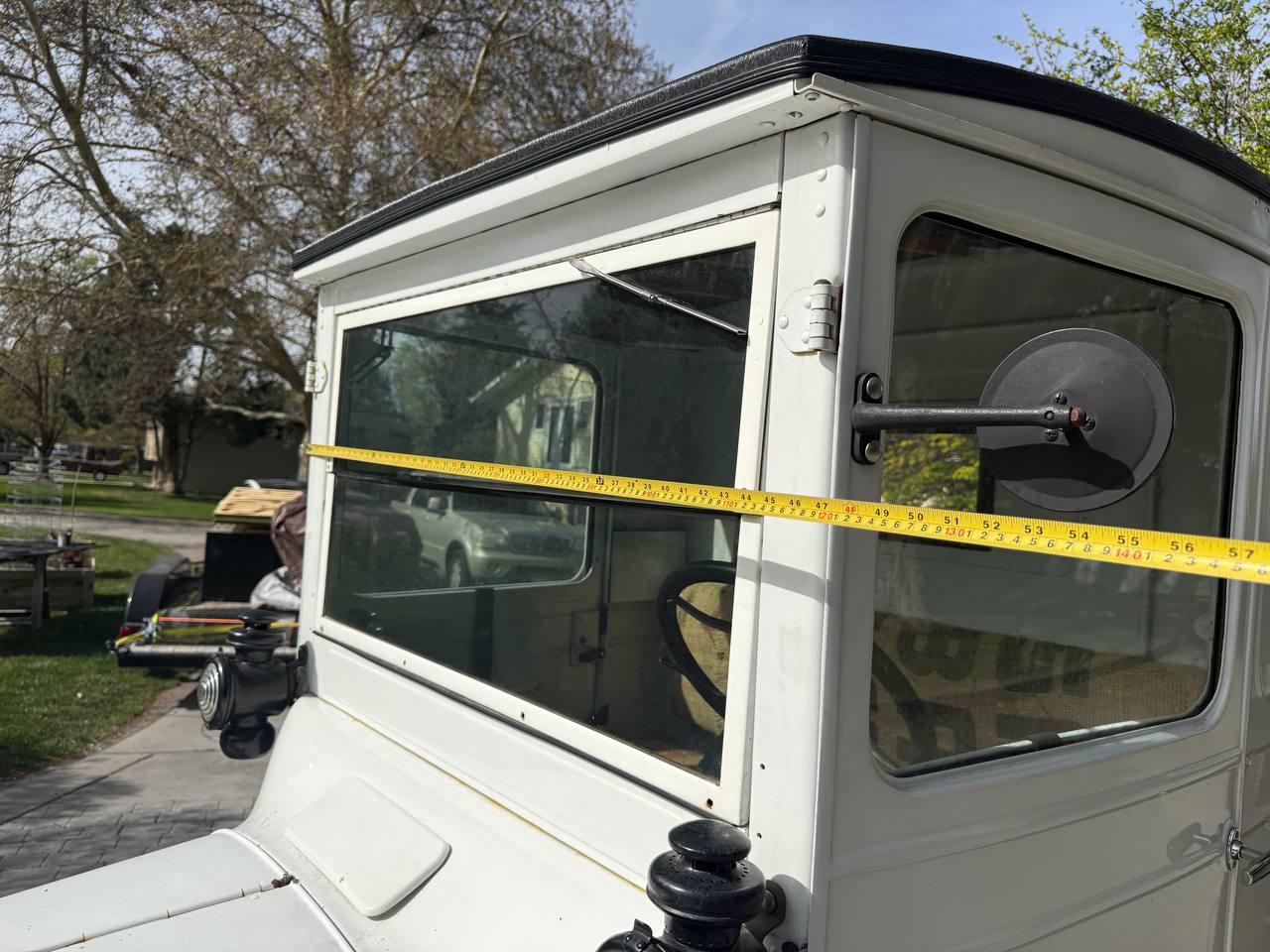

Cab Width with Mirror (side)
57 in
Total cab width including mirror measured from the side. Use this for tight clearance planning.
Cab Width with Mirror (side)
Cab Door and Windows

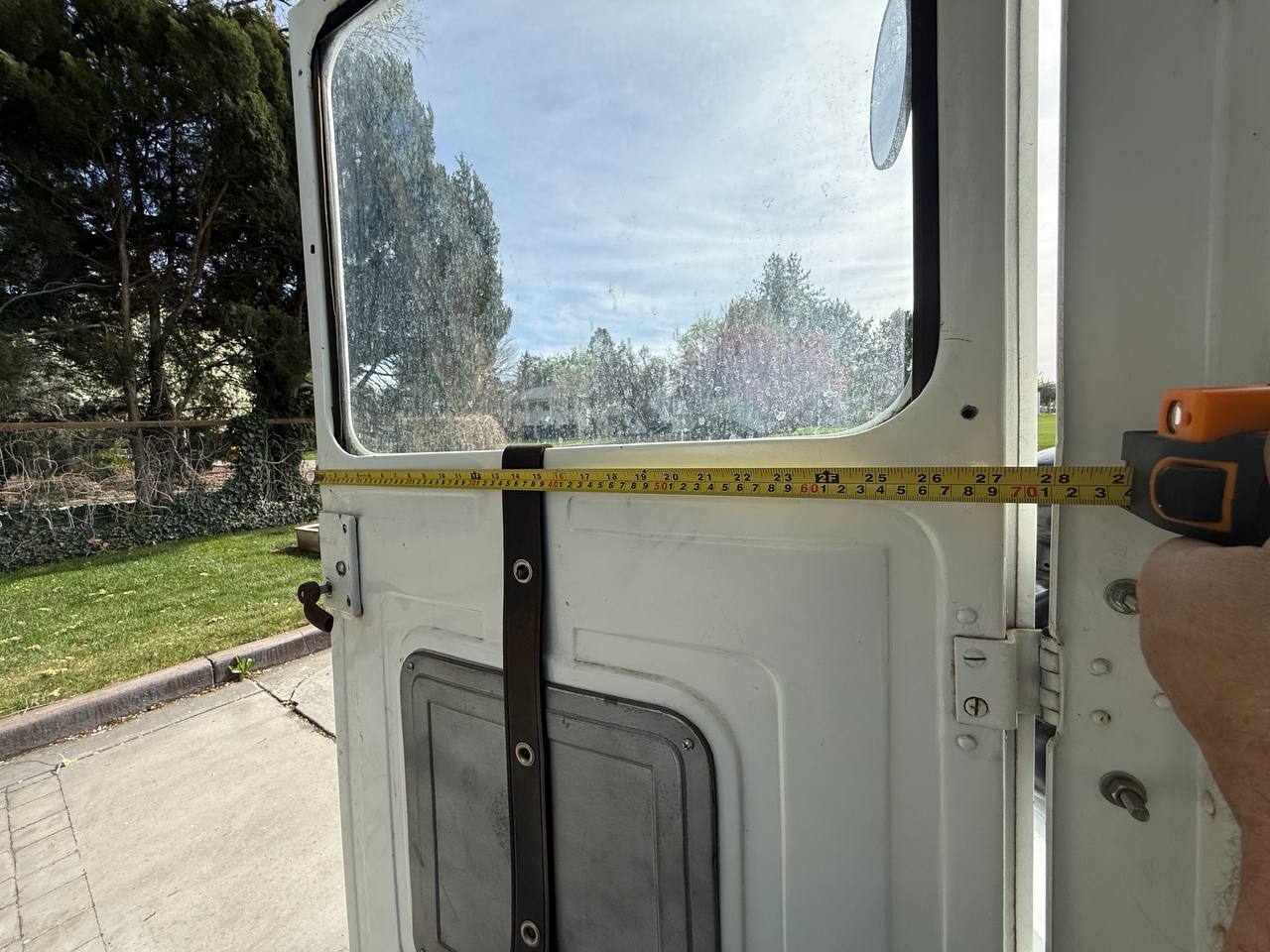

Cab Door Width
28 in
Width of the cab door opening. Useful for staging actors entering or exiting.
Cab Door Width

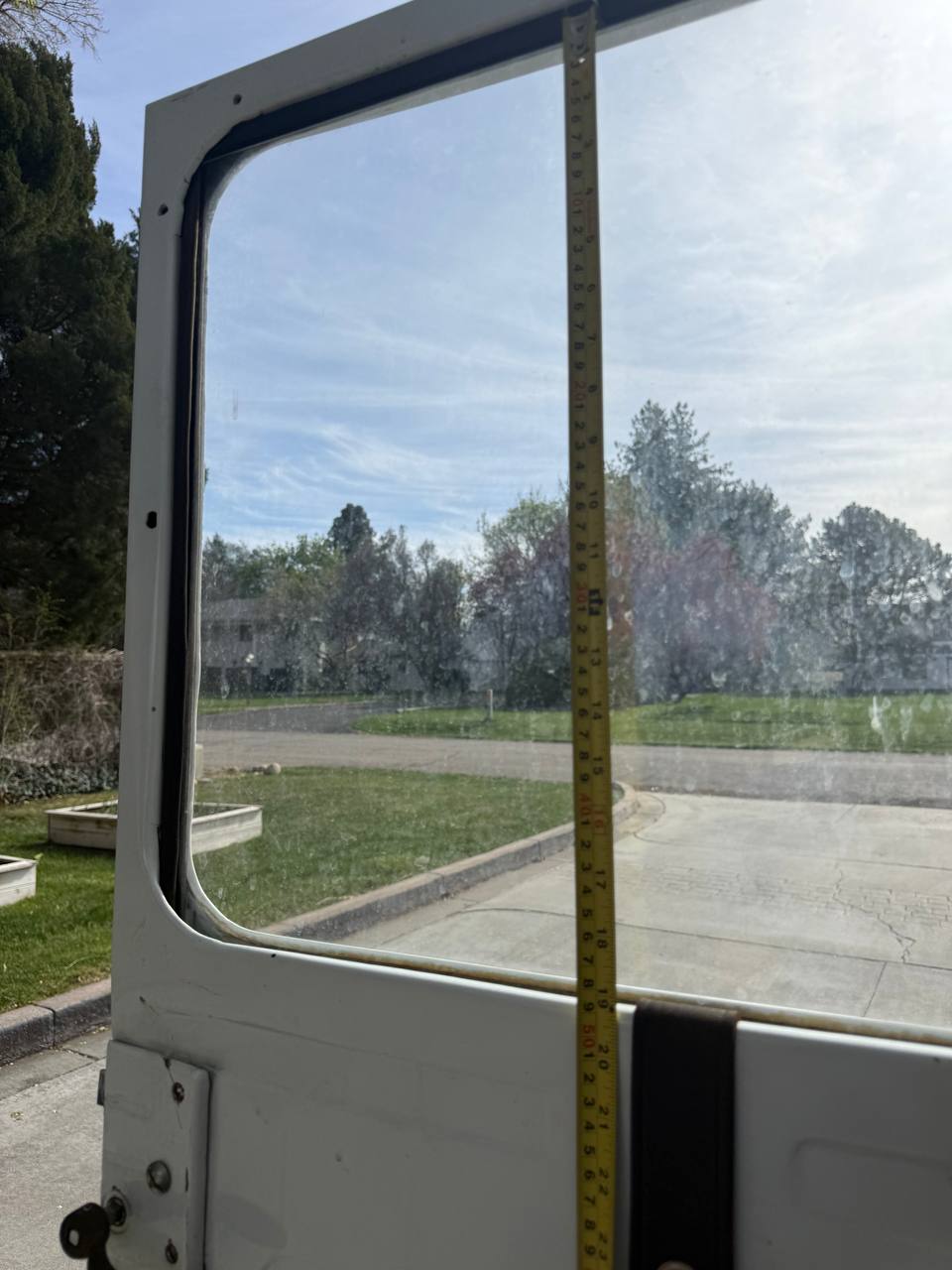

Door Window Height
15 in
Height of the cab door window opening.
Door Window Height

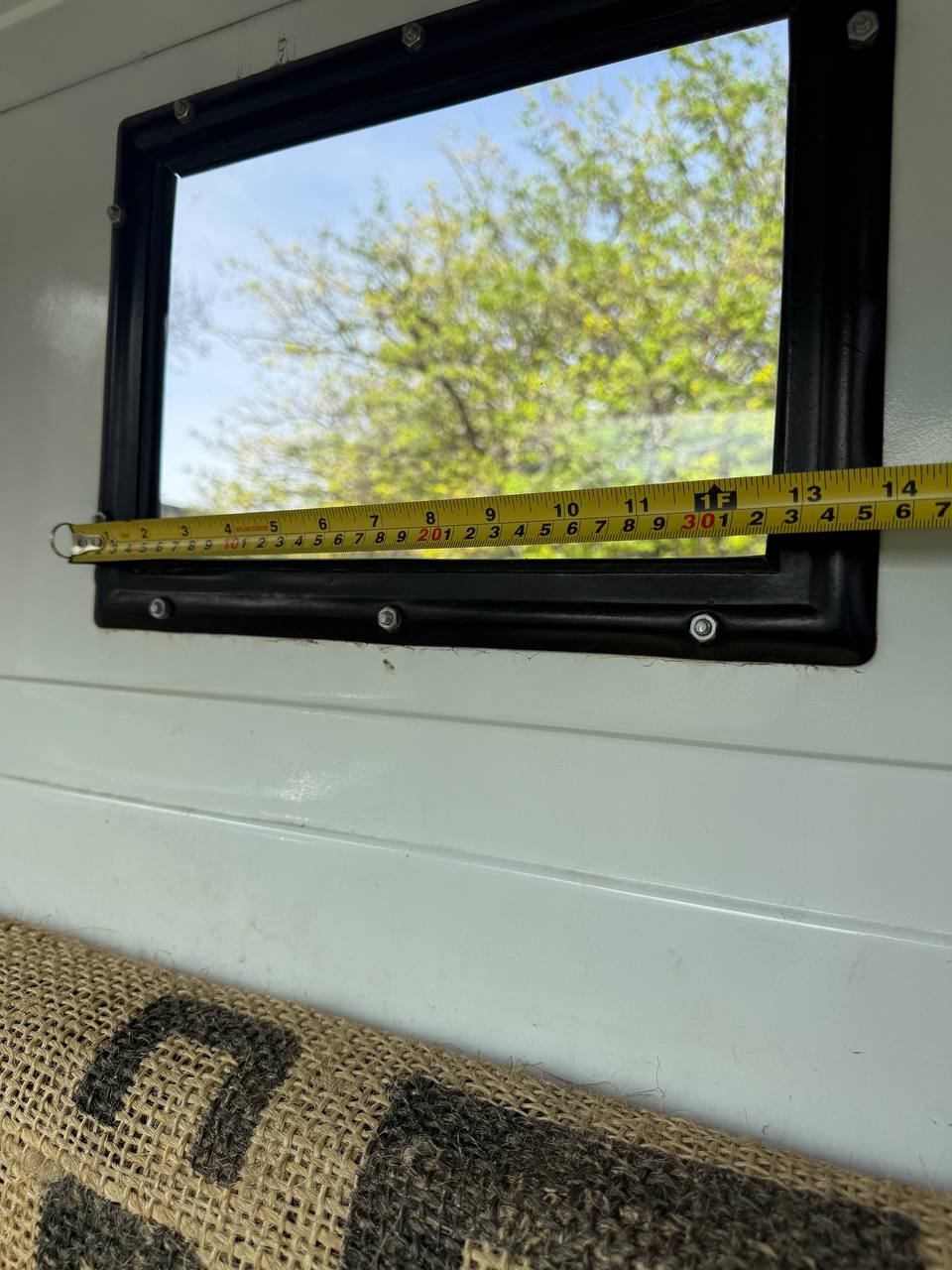

Rear Cab Window Width
13.5 in
Width of the small rear cab window. Relevant for camera placement shooting through the rear.
Rear Cab Window Width

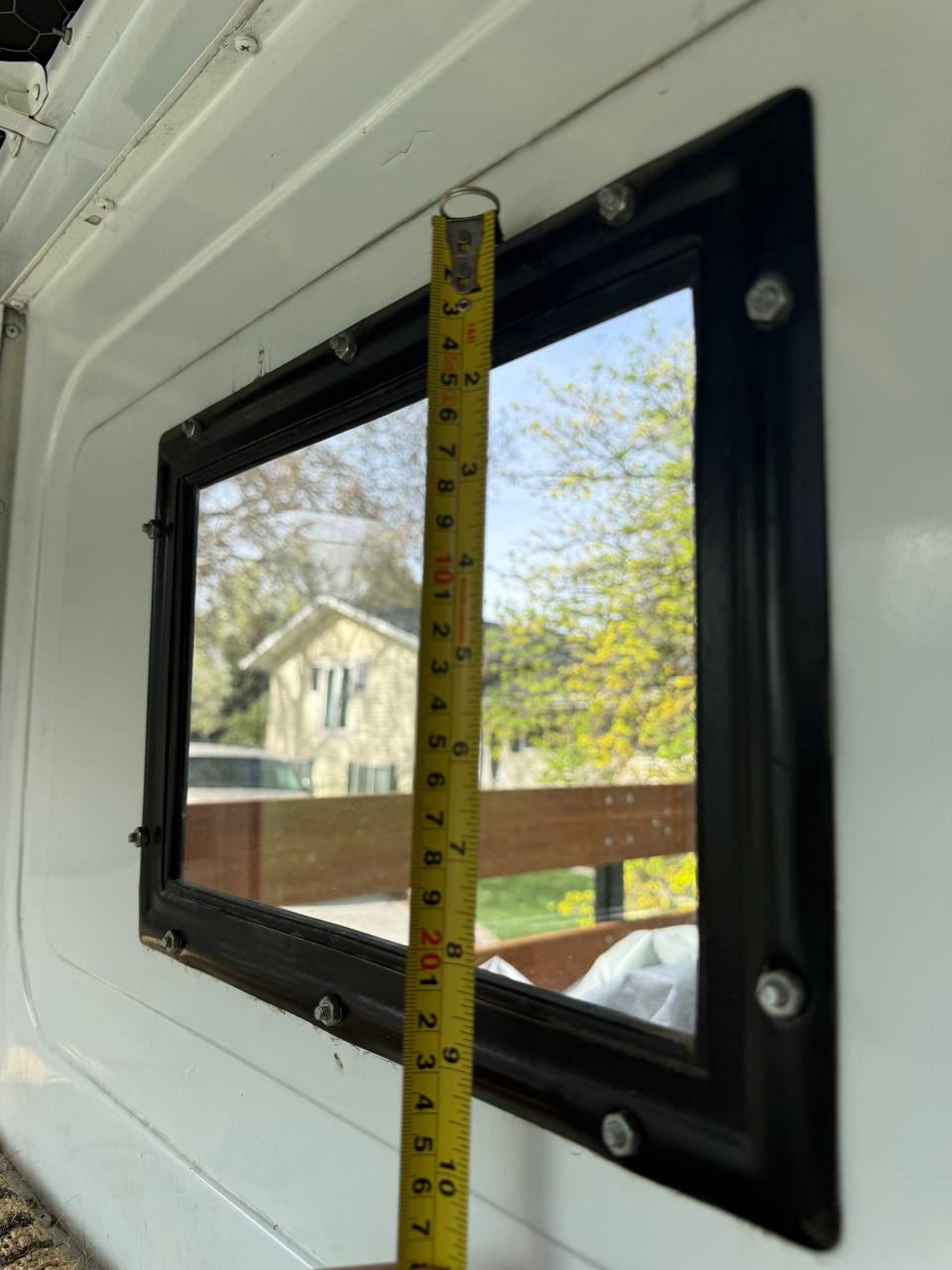

Rear Cab Window Height
10 in
Height of the small rear cab window opening.
Rear Cab Window Height
Cab Interior

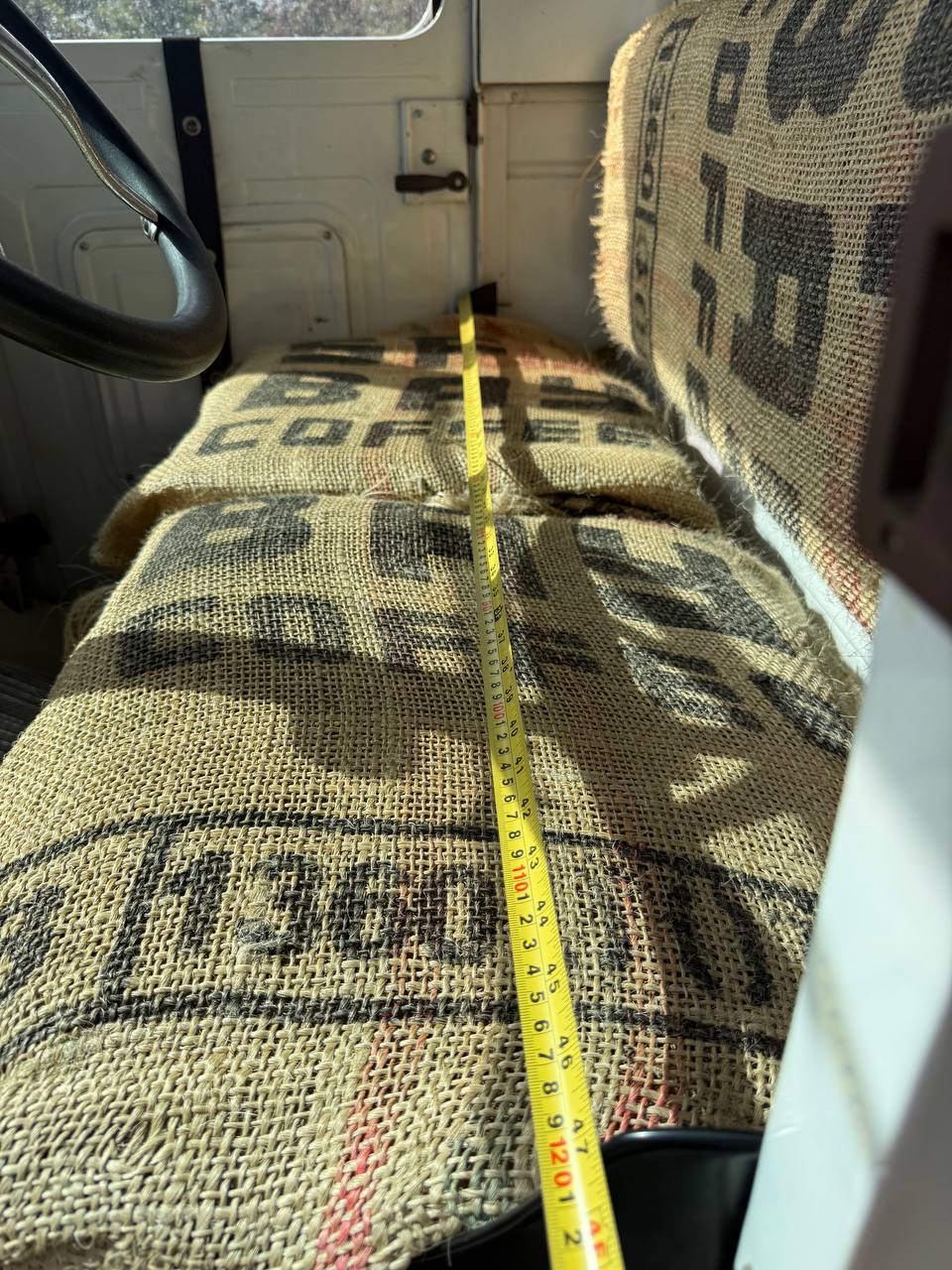

Bench Seat Width
47.5 in
Full width of the bench seat side to side. Guides staging for interior shots.
Bench Seat Width

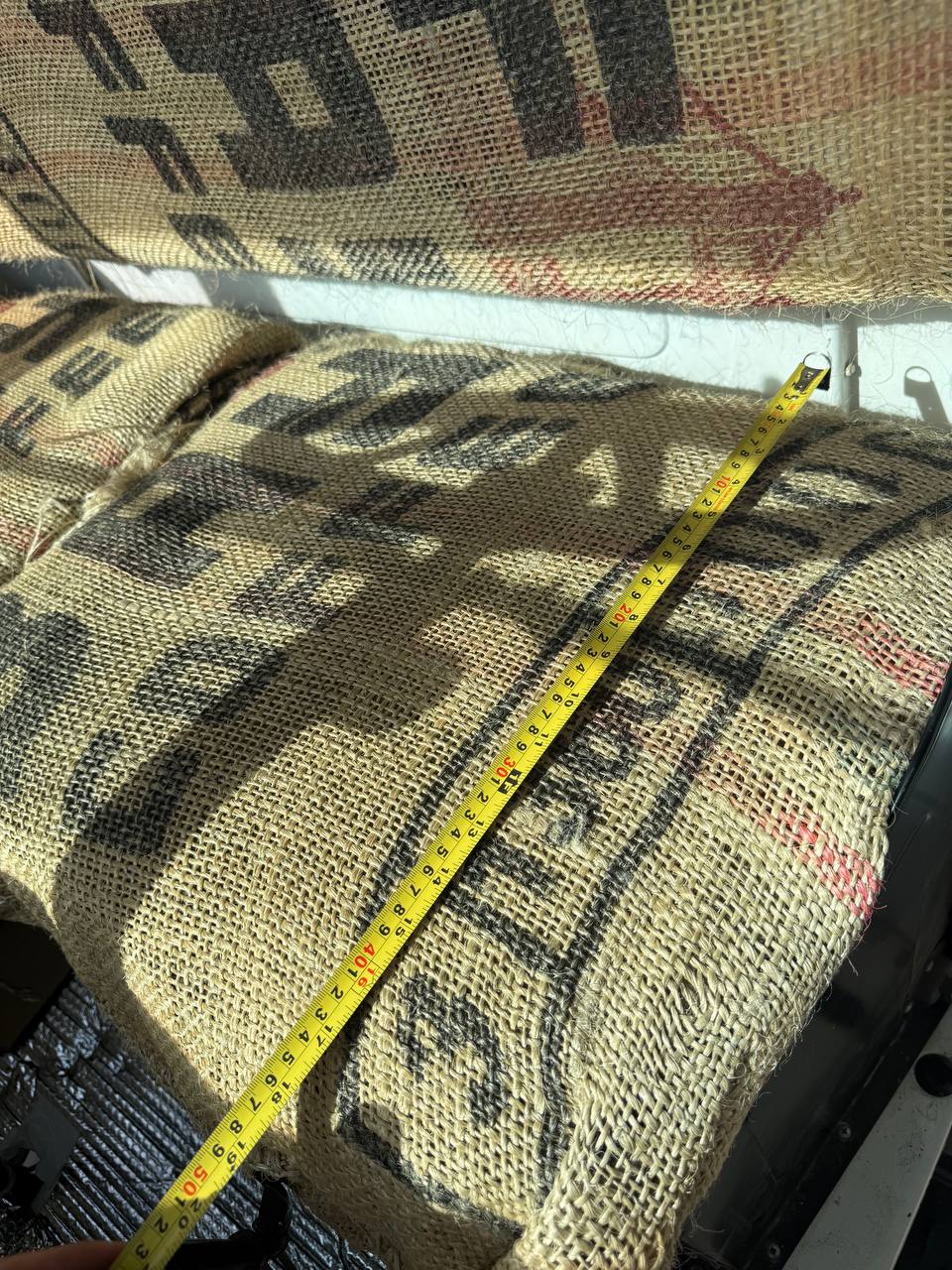

Bench Seat Depth
40 in
Depth of the bench seat from backrest to front edge.
Bench Seat Depth

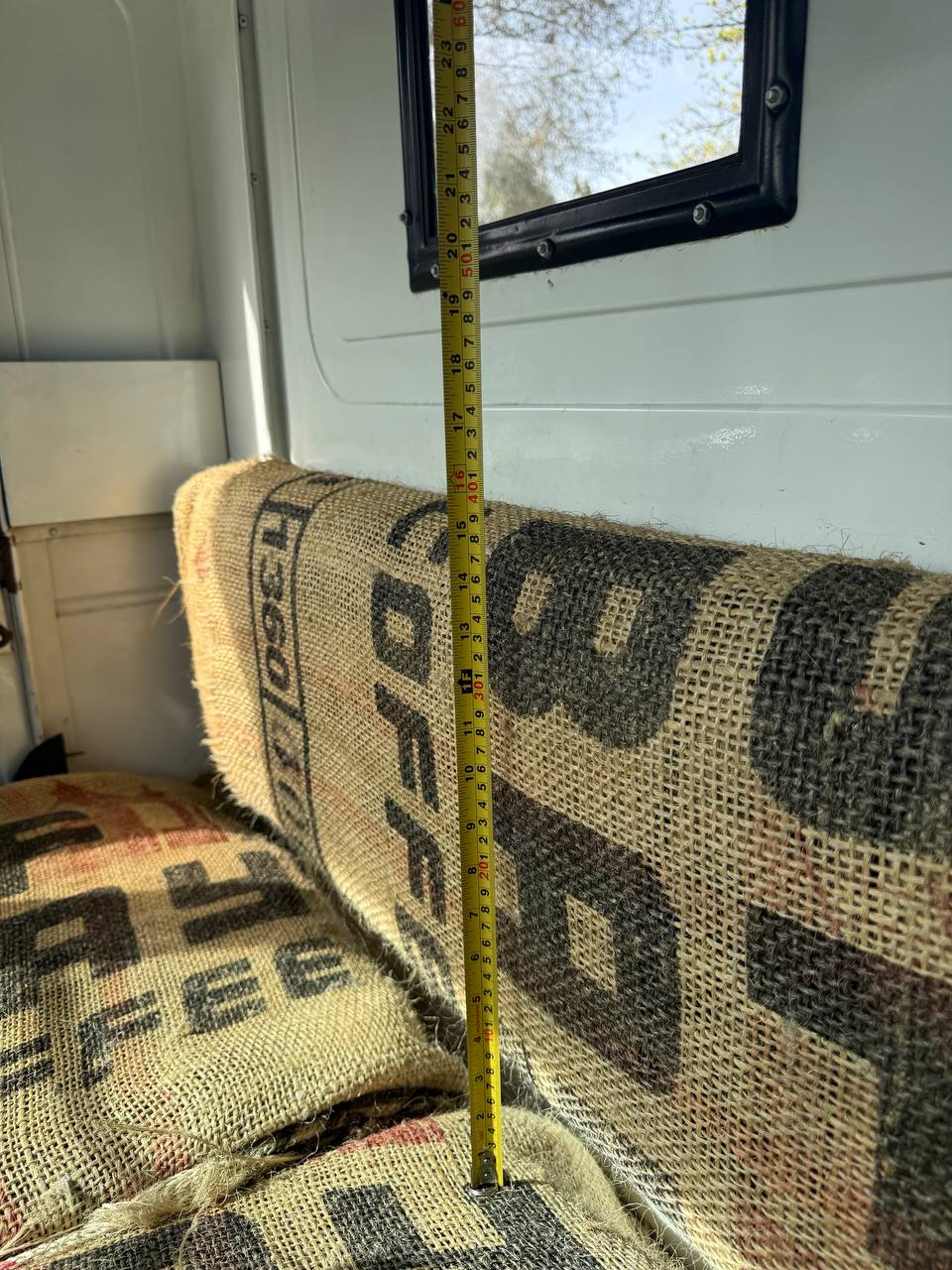

Headroom Above Seat
23 in
Vertical clearance from the seat surface to the ceiling. Critical for interior camera positions.
Headroom Above Seat

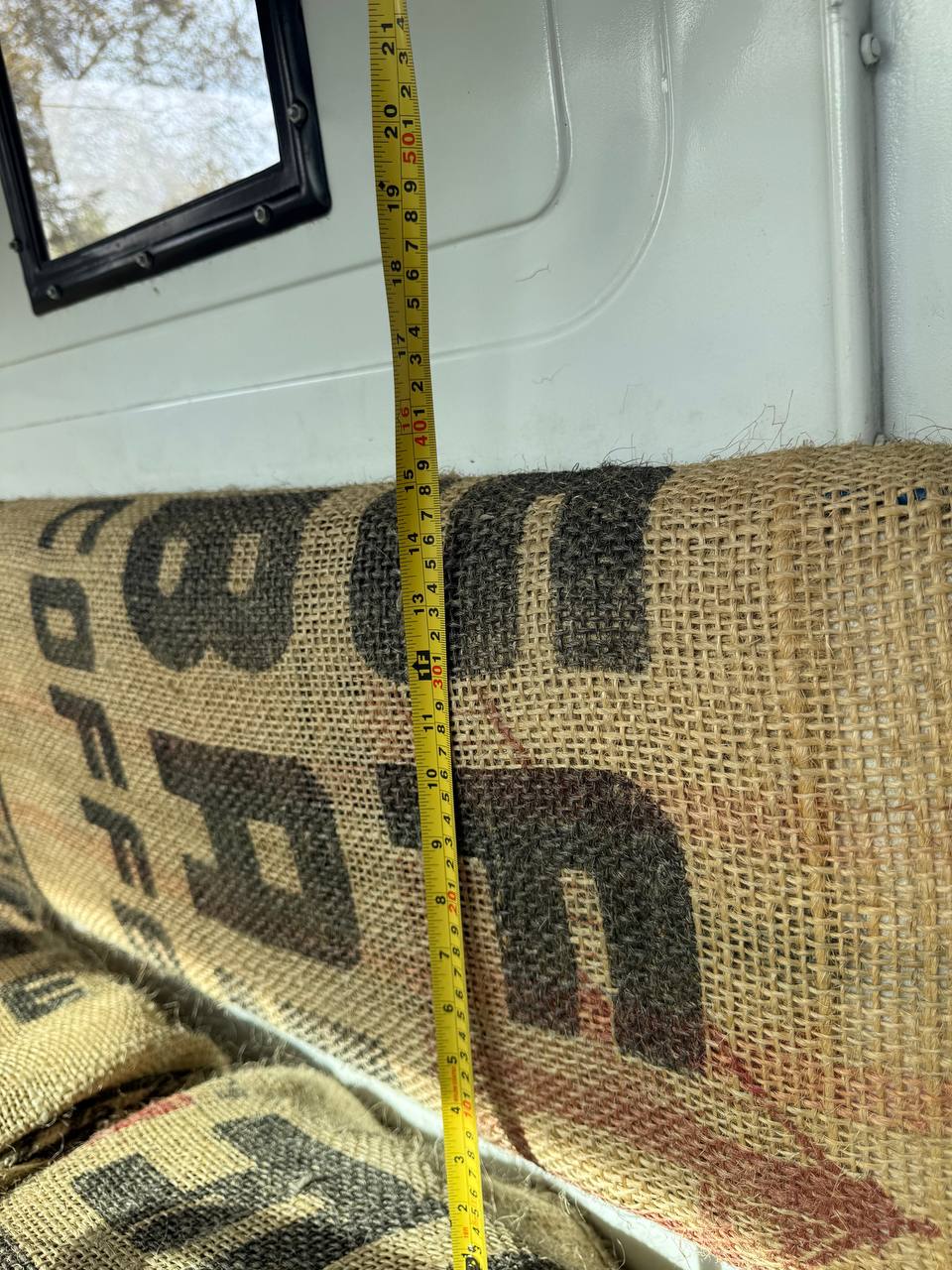

Interior Cab Wall Height
21 in
Interior cab wall height measurement from seat level.
Interior Cab Wall Height

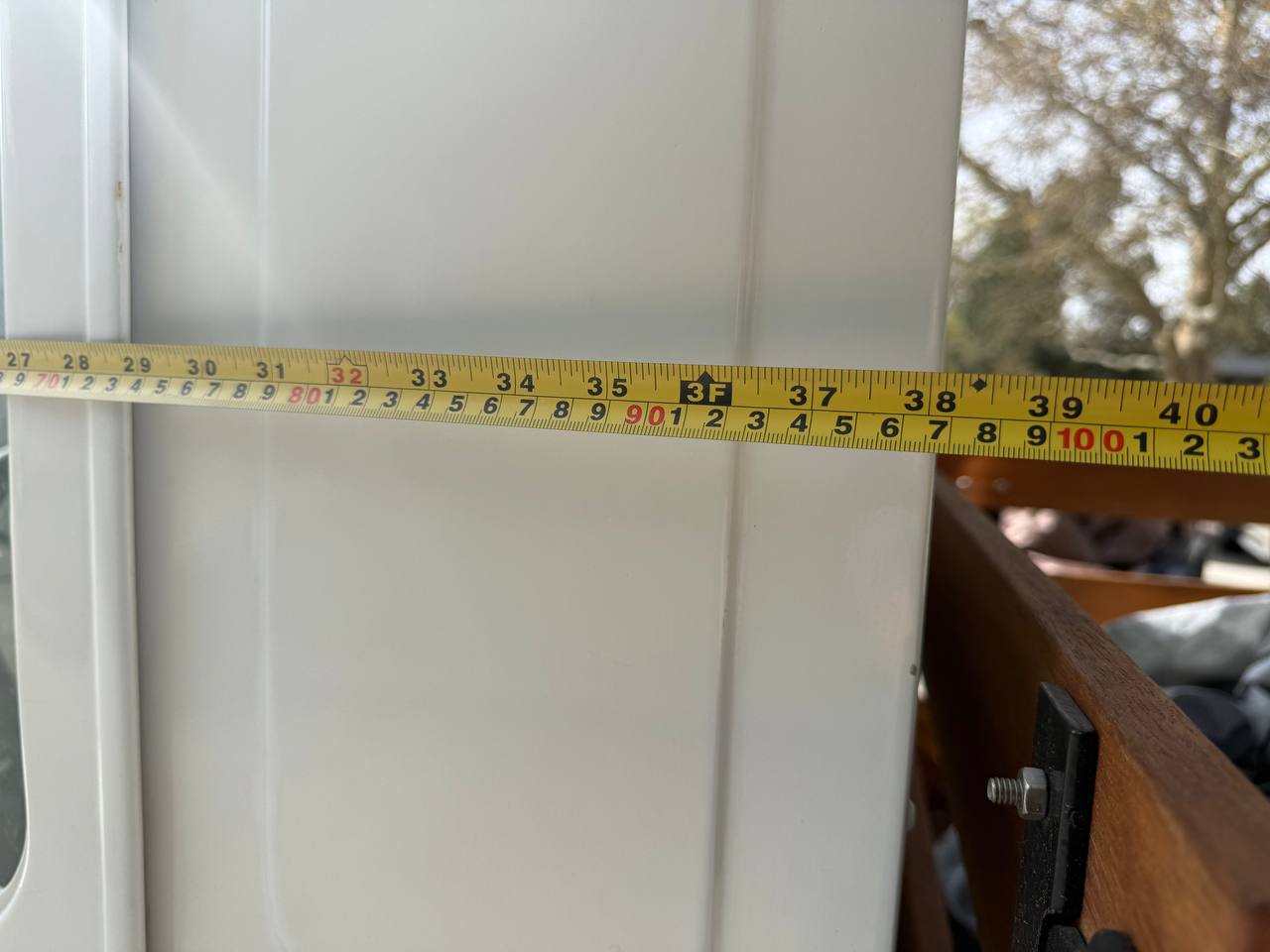

Cab Rear Panel Width
13-14 in
Width of the rear interior cab panel section visible behind the seat.
Cab Rear Panel Width
Cargo Bed

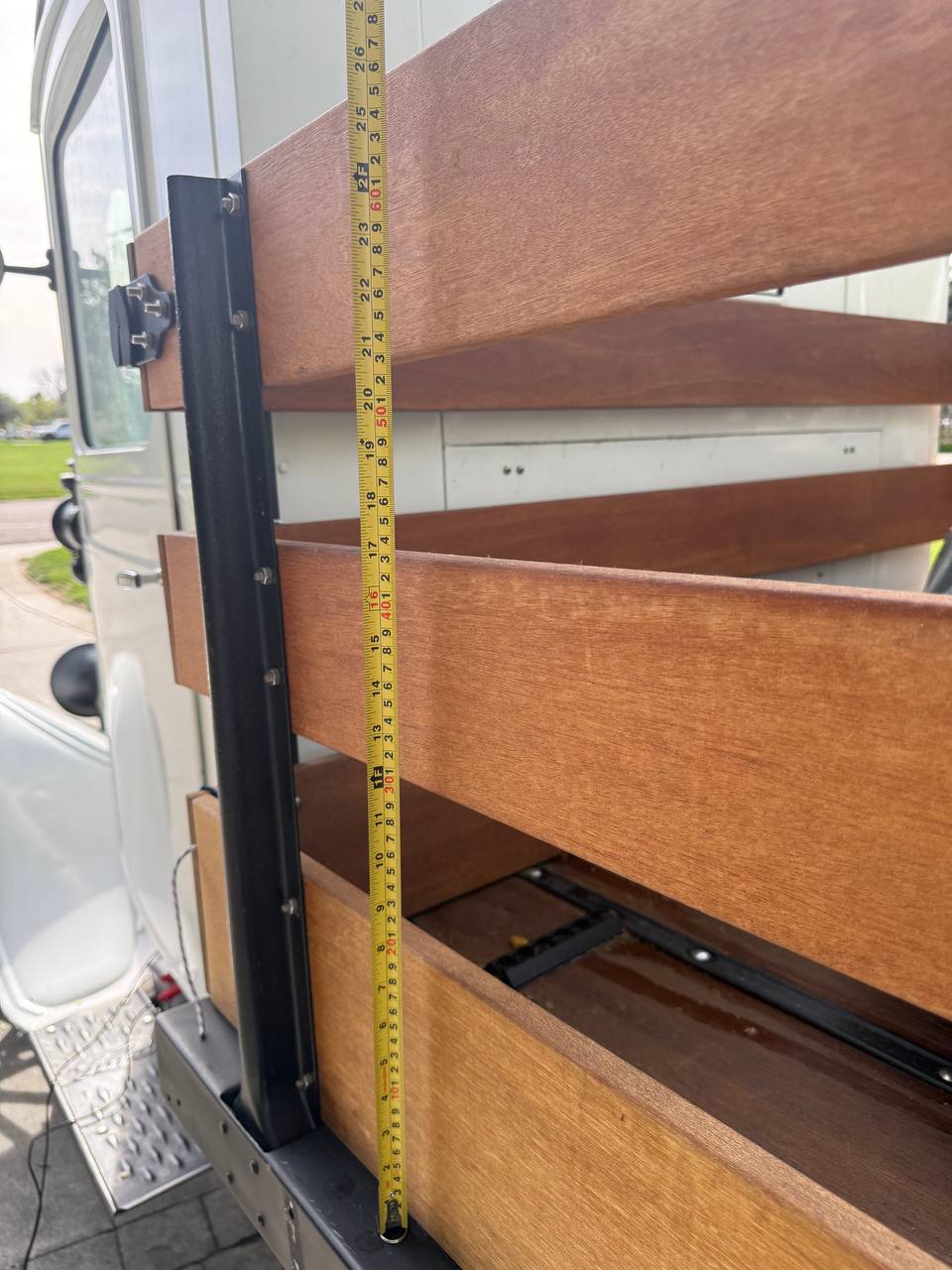

Bed Rail Height
26 in
Height of the stake bed side rails measured from the bed floor to the top of the rail.
Bed Rail Height

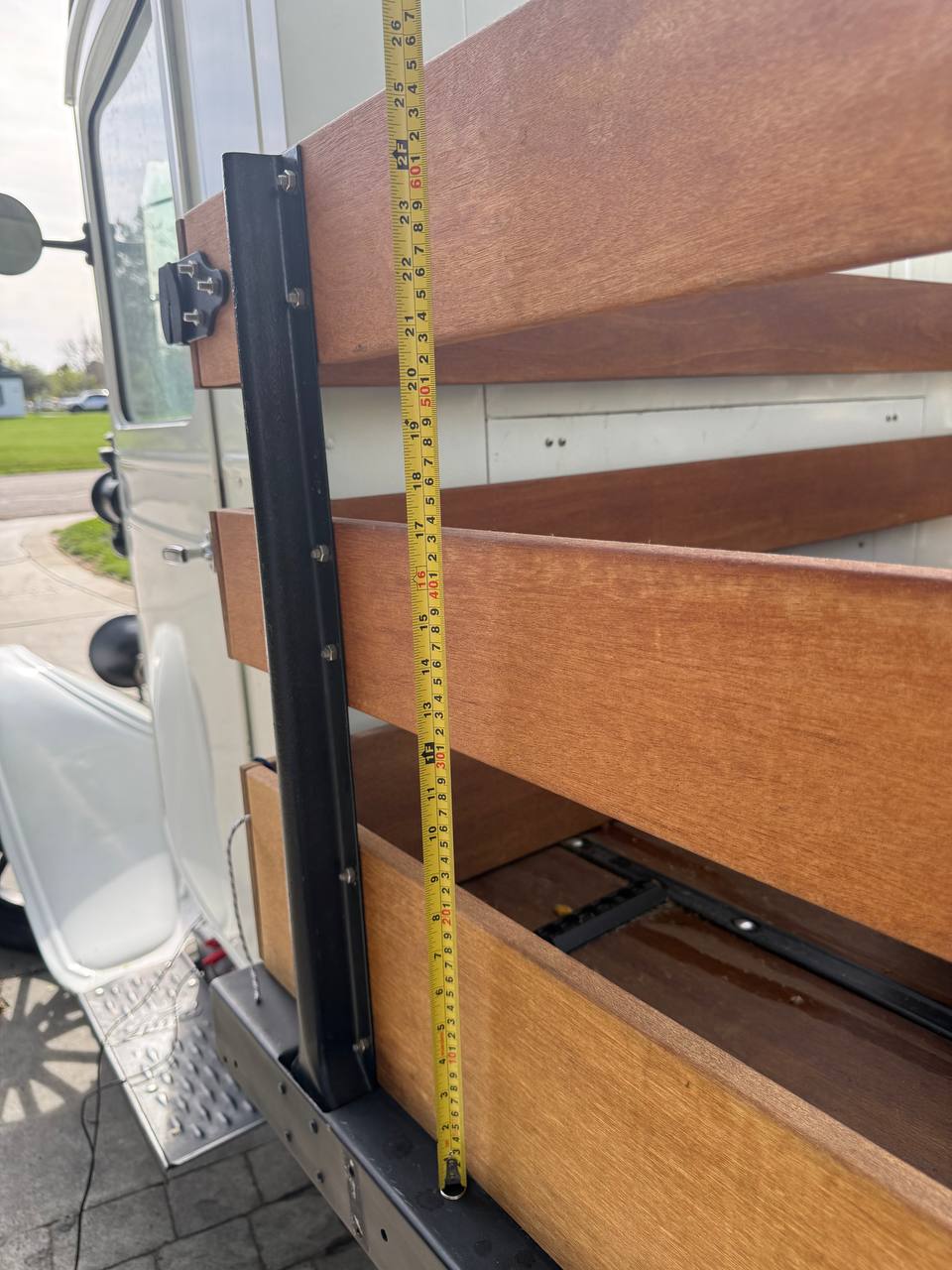

Bed Rail Height (alternate)
26 in
Same bed rail height from a second angle, confirming the 26 in measurement.
Bed Rail Height (alternate)
Cargo Area Width
22-24 in
Cargo bed floor area width measurement. Useful for prop placement planning.
Cargo Area Width

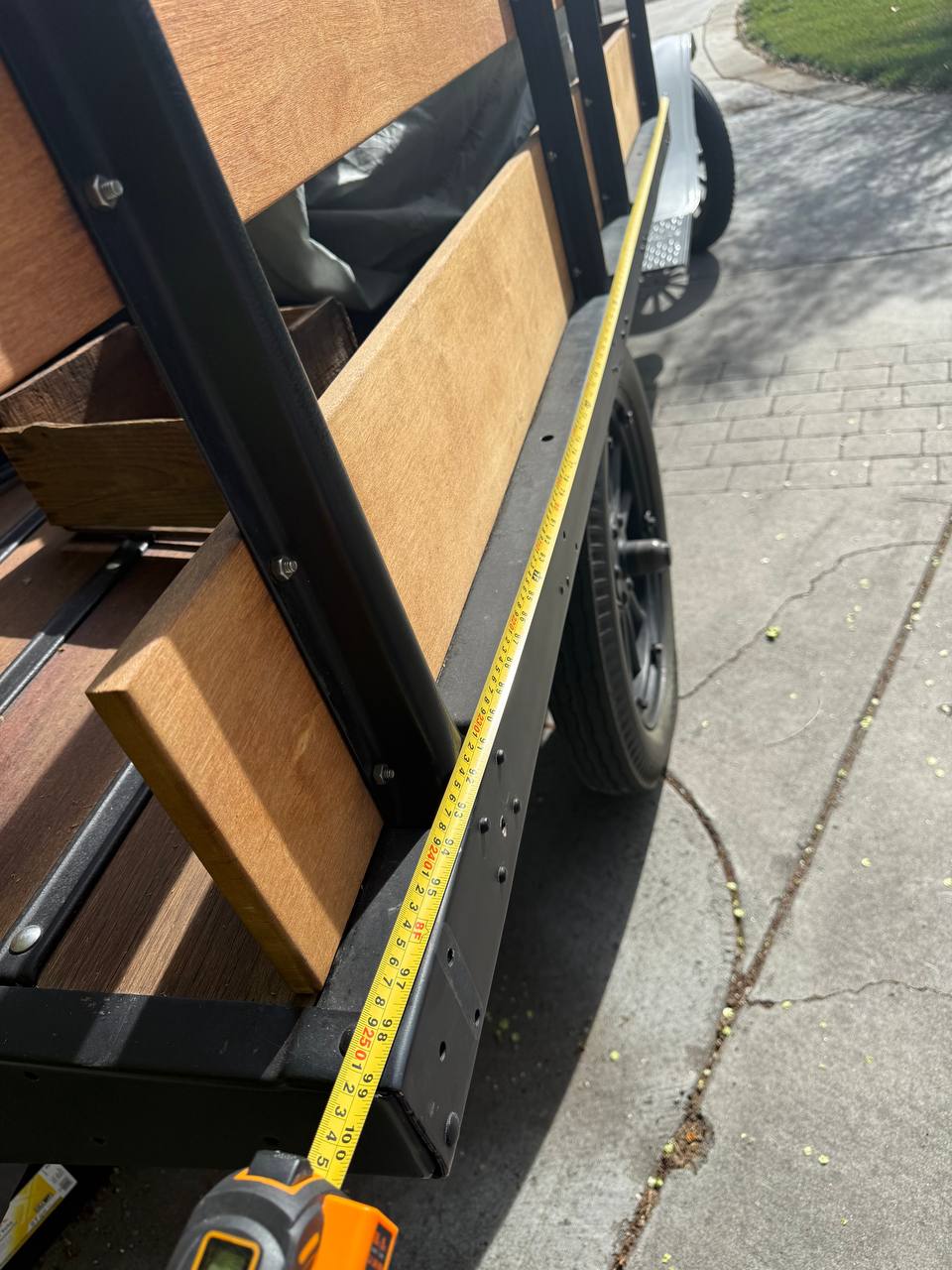

Bed Length (full)
100 in
Full stake bed length measured along the side rail. Approximately 8 ft 4 in.
Bed Length (full)

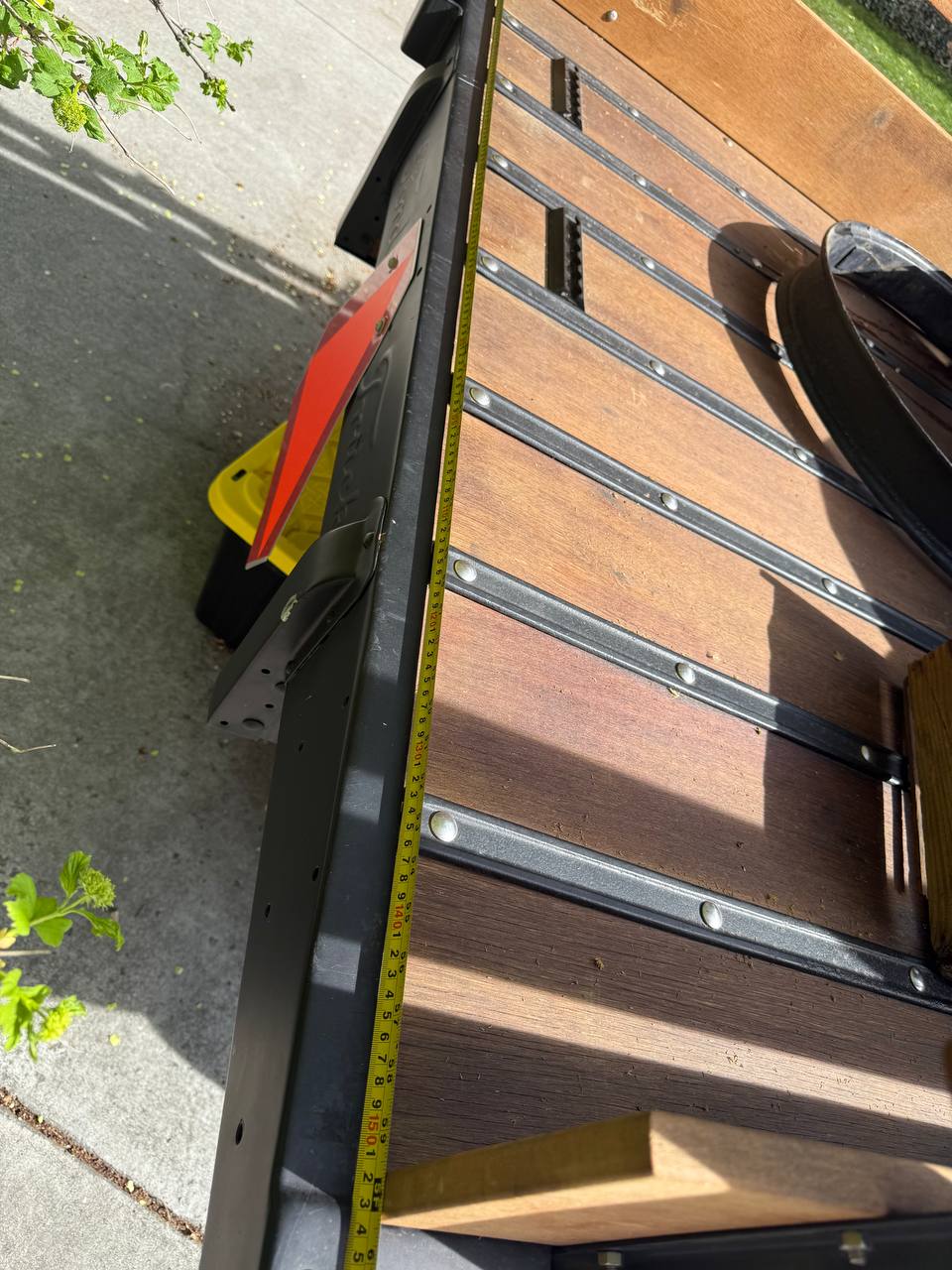

Bed Length Front Half
55 in
Measurement from the cab end to mid-bed. Useful for splitting the bed into staging zones.
Bed Length Front Half

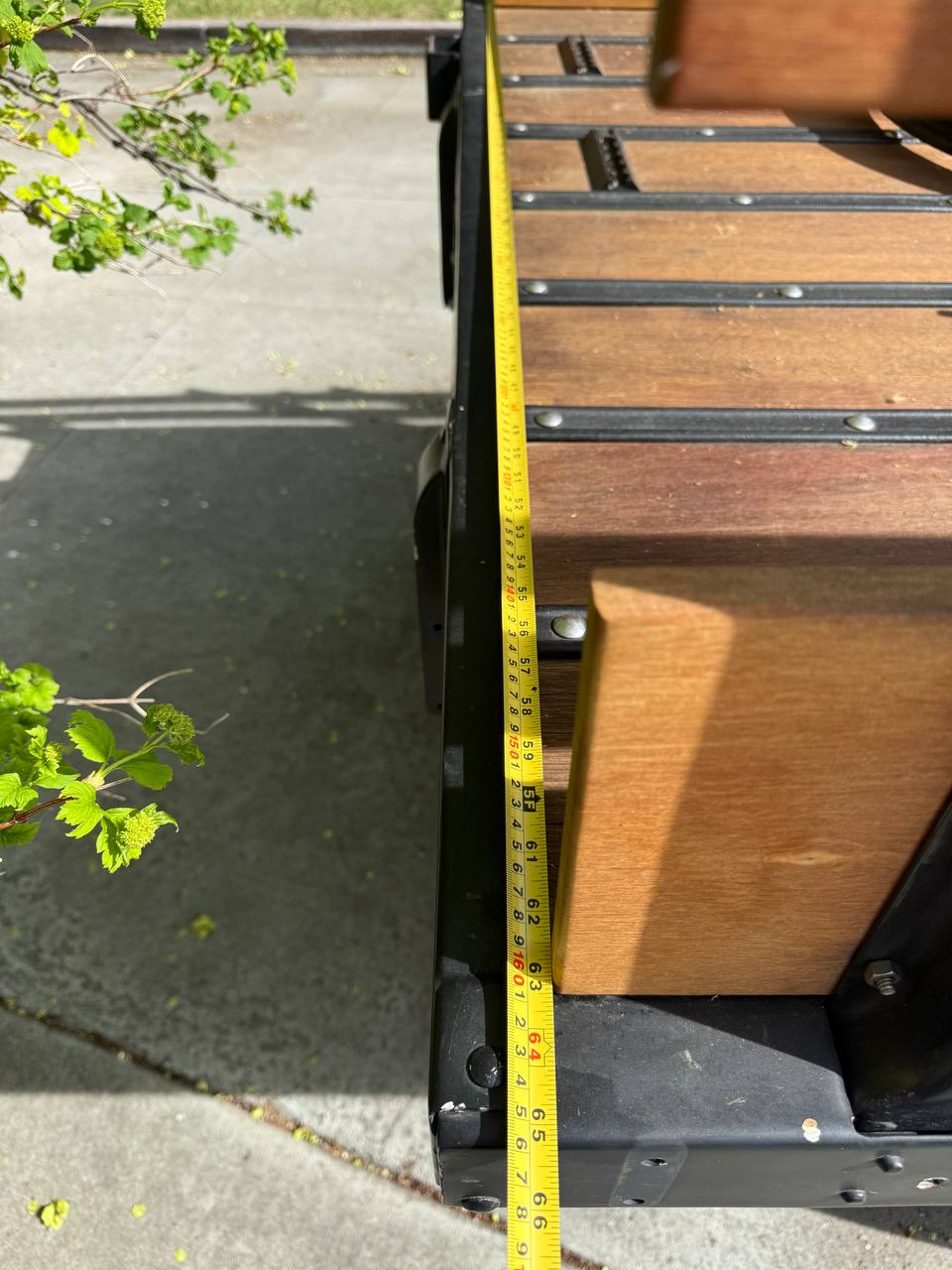

Bed Length to Tailgate
66 in
Total bed length from the cab to the tailgate.
Bed Length to Tailgate
Overall Dimensions

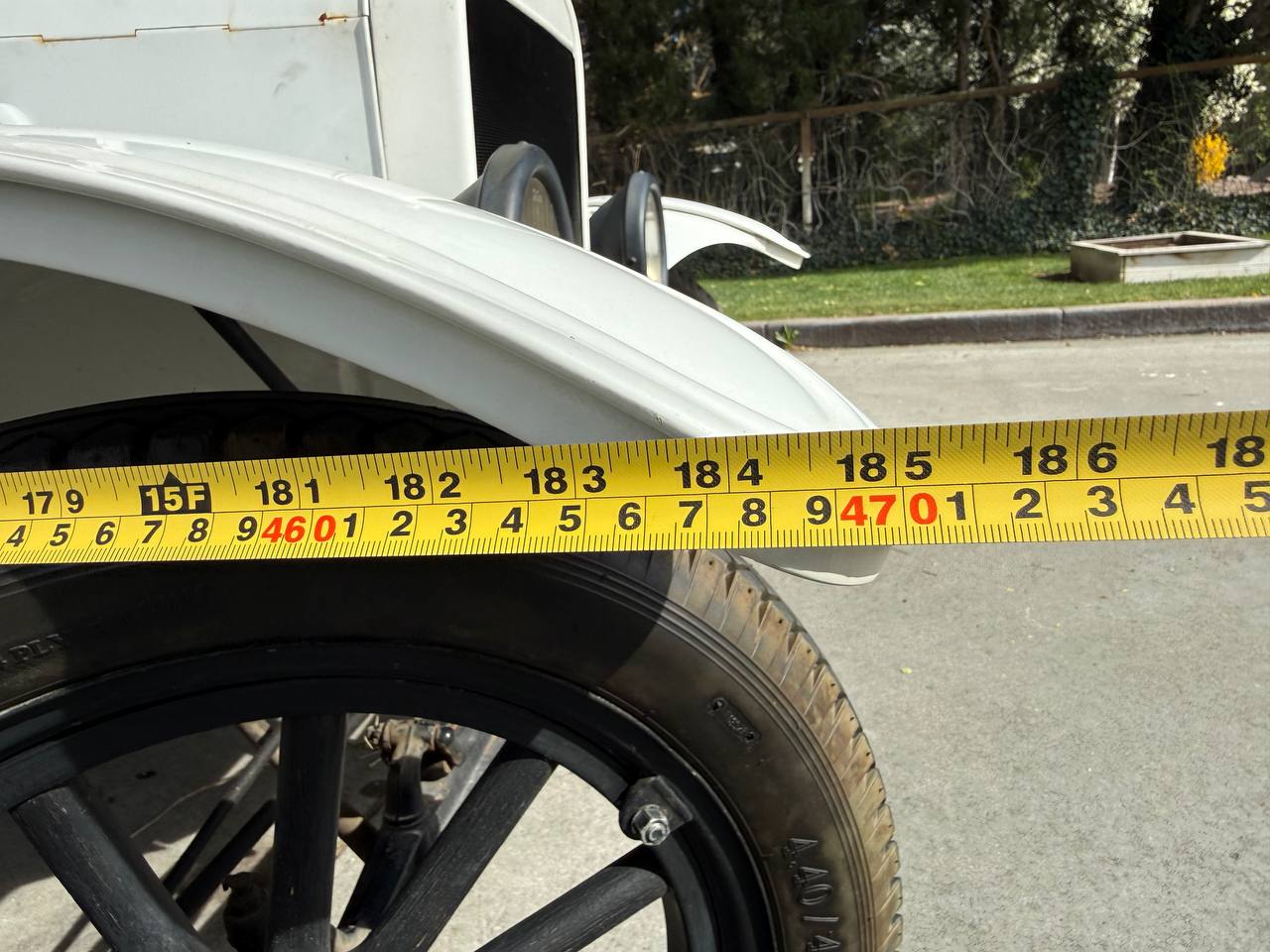

Overall Length (fender run)
190 in
Overall truck length measured along the passenger side fender run. Approximately 15 ft 10 in.
Overall Length (fender run)

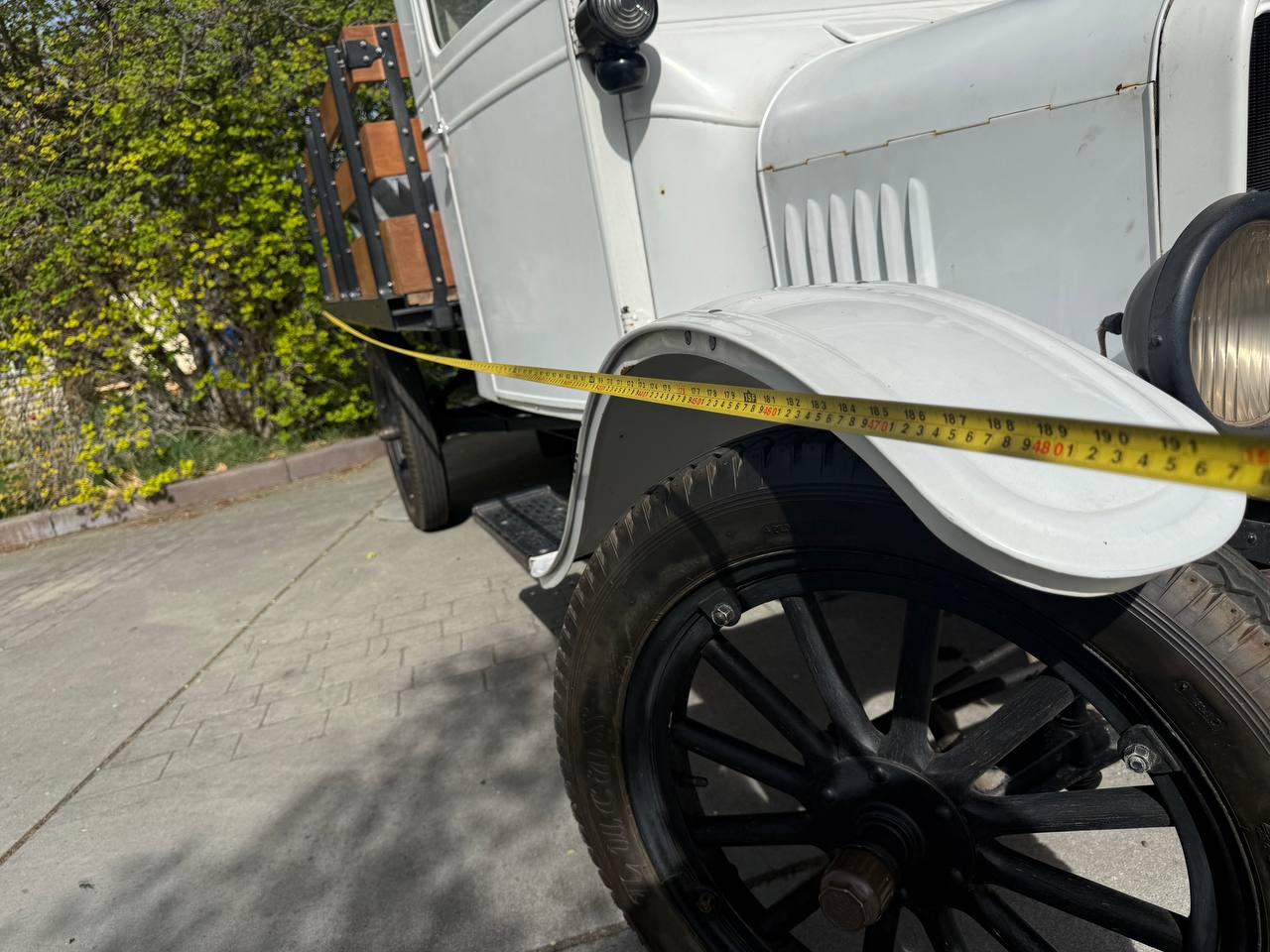

Overall Length (side profile)
190 in
Full truck length from front to rear, measured on the passenger side. Confirms the 190 in figure.
Overall Length (side profile)

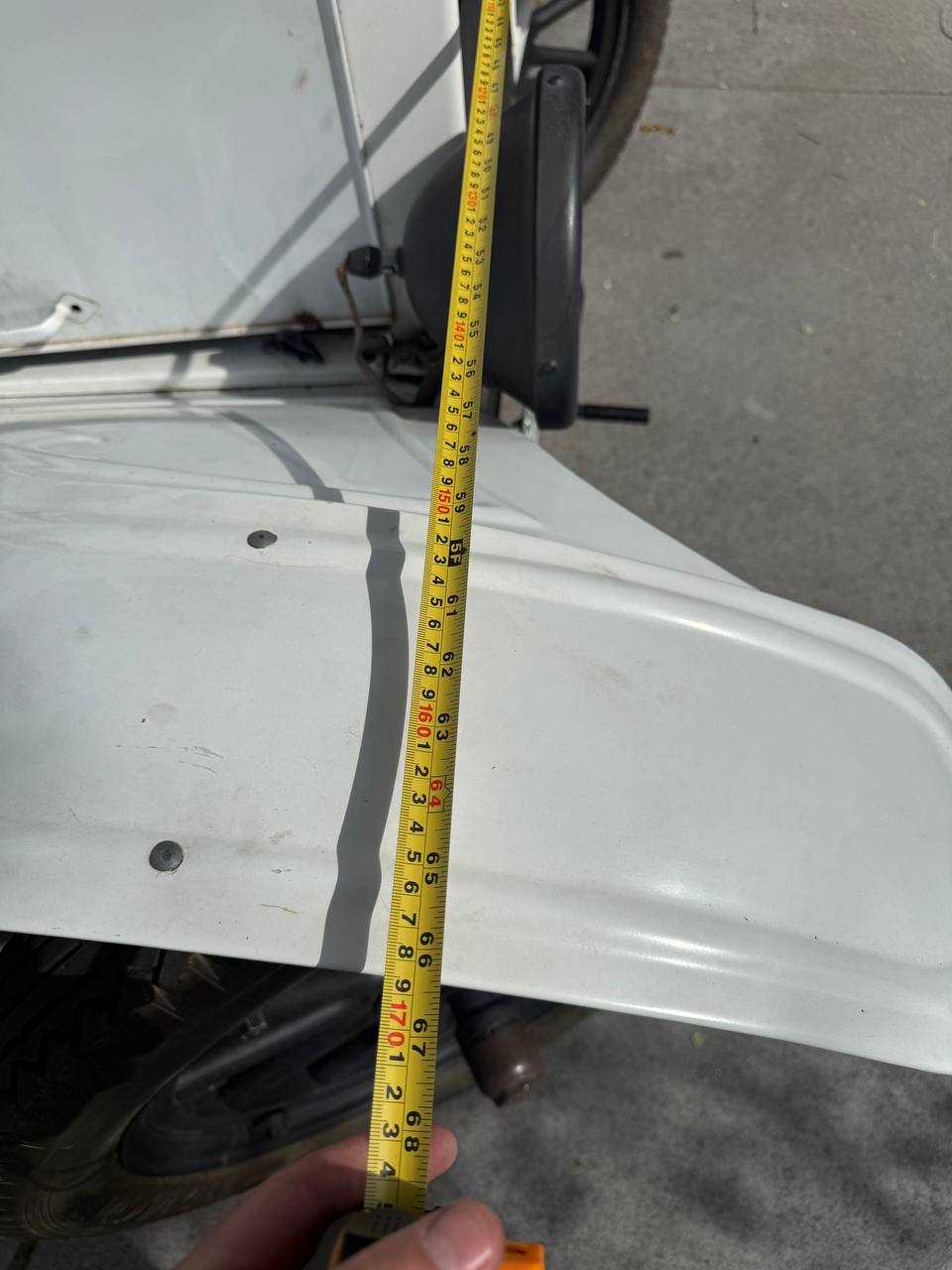

Hood / Cowl Section
167 in
Hood to cowl section length. Useful for art department and period reference.
Hood / Cowl Section

All measurements are approximate. Confirm on site before production.
